Crankshaft Inspection AI

Catch forging cracks, folds, grinding cracks, and journal and oil hole defects on every crankshaft, from forging to final wash.

Try it now for free Talk to an AI Expert

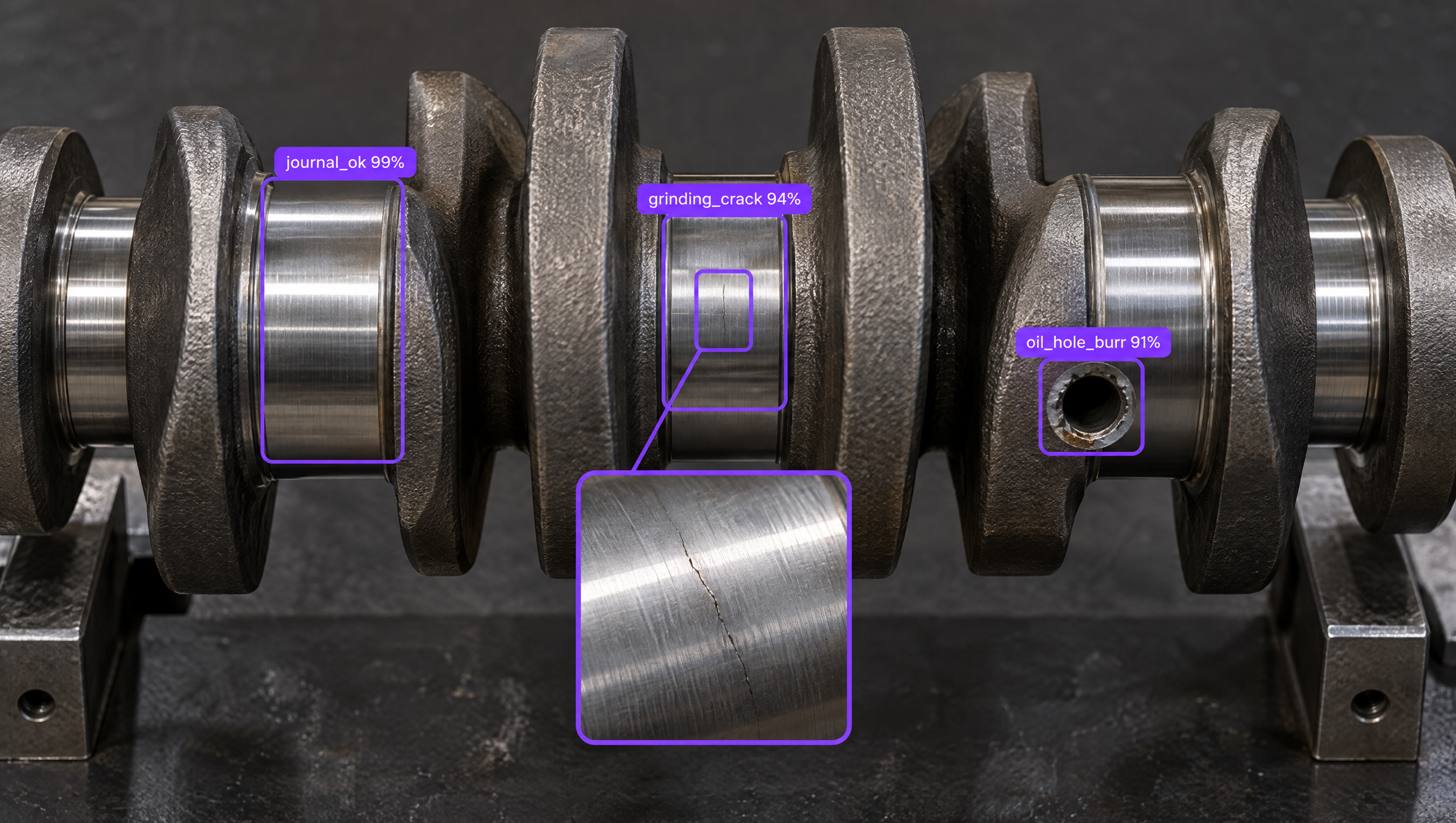

Crankshaft with computer vision annotations highlighting a good journal, a magnified grinding crack, and an oil hole burr, including confidence scores.

Crankshaft Inspection AI for the Toughest Forge Shops, Machining Lines, and Engine Plants

Deploy Anywhere, Run Everywhere
Run crankshaft inspection on cameras at the forge, the grinders, the MPI booth, and final inspection, on the edge, on-prem, in your VPC, or via API.
One Platform, Full Adoption
Tools every forge, machining, and quality team can adopt, from operators and NDT inspectors to process and quality engineers, no separate ML team required.
Secure, Compliant, and Audit-Ready
Data stays safe with SOC 2 Type II compliance, encrypted data, and an uptime SLA, with an image record for every crankshaft tied to its serial number.

“The vision AI solutions we developed with Roboflow have been a core component of connecting our teams and unlocking their ability to collaborate.”

Lou Stocco

Director of Manufacturing Advanced Analytics, USG

Read the full story See customer stories

Talk to a Vision AI engineer who's shipped in automotive and engine manufacturing.

Bring us your toughest crankshaft inspection problem and we'll map a working solution.

Ask us about:

Solution architecture that fits IATF 16949, your MPI procedures, and your crankshaft line
A live demo on images of your own crankshafts
Deployment options: edge at the station, on-prem, air-gapped, or VPC
ROI modeling against scrap, rework, MPI inspection hours, and warranty claims

Over 16,000 organizations build with Roboflow.

Rivian
Pella
Chobani
USG Corporation
BNSF Railway
American Woodmark

Start where you are

Vision AI is transforming businesses

Customers across the board are solving complex challenges and driving meaningful impact.

Automotive customer
$10 million
Saved by automatically detecting defects on the production line
Logistics & freight company
90%
Less time spent manually tracking shipping inventory
Building materials supplier
60%
Lower customer return rate with improved product quality

Inspect Every Crankshaft, from the Forge to Final Wash

Add a real-time inspection layer to every crankshaft on the line with Roboflow vision AI for crankshaft inspection. Built for forge shops, machining lines, and engine plants where a fold from forging opens up after hardening, a grinding crack runs across a journal that already carries hours of machining, and a crack at an oil hole is the start of a fatigue failure in the field.

Forging and heat treatment:

Detect surface cracks and folds on forged blanks before machining, when scrapping a part costs the least.
Check for leftover flash, trim damage, and scale after trimming and shot blasting.
Flag cracks at section changes and oil holes after induction hardening.

Machining and grinding:

Inspect main and pin journals for grinding cracks, scratches, chatter, and burn marks after grinding and polishing.
Check oil holes for burrs, chips, and cracks at the hole edge.
Verify fillets, threads, keyways, and drilled features, alongside machined part inspection.

MPI, records, and traceability:

Read MPI indications under UV-A with automated magnetic particle inspection, and put each one in front of a certified inspector.
Keep an image for every crankshaft tied to its serial, with visual inspection traceability.
Trend findings by forging die, grinder, and shift, so a worn die or wheel shows up in the data before it shows up in scrap.

Bring intelligence to every crankshaft today. Stop forging and grinding defects from becoming scrap, rework, and engine failures in the field.

‍

Frequently asked questions

What is crankshaft inspection with Vision AI?

Crankshaft inspection with Vision AI uses cameras at forging, machining, grinding, MPI, and final inspection and a trained computer vision model (opens in a new tab) to find cracks, folds, surface defects, and feature problems on every crankshaft, with an image record tied to its serial. It works with engine component inspection and, for cast iron crankshafts, casting defect detection.

Can Vision AI find fine cracks on ground journals?

Yes. Grinding cracks run as fine lines across the journal, perpendicular to the grinding direction. A detection or segmentation model trained on your own crankshaft images, with high-resolution cameras and lighting set up for the journal surface, picks those lines out against the ground finish, and tiling keeps hairline defects large enough to detect.

Does crankshaft inspection support IATF 16949, ISO 9001, and ASTM E1444?

Crankshaft inspection supports the inspection records and traceability expected under IATF 16949 (the automotive quality management standard) and ISO 9001 (the quality management system standard), and magnetic particle testing under ASTM E1444, with an image and result for every crankshaft.

Roboflow serves as the inspection engine, and your quality and NDT teams own the acceptance criteria, the written procedures, and the release decision.

Can it integrate with our line controls, MES, and quality systems?

Yes. Roboflow writes pass/fail and defect type to a PLC tag over OPC UA or MQTT, so the line can divert a crankshaft, and sends results and images over REST (opens in a new tab) or to a database for MES, SPC, and traceability systems.

‍
