Automated Optical Inspection AI

Add a real-time inspection layer to every board and assembly on the line with Vision AI for automated optical inspection. Built for the operations where one escaped solder bridge, missed component, or over-sensitive threshold burying operators in false calls can mean a field return, a customer chargeback, or a line that slows to the speed of manual review. Whether you're inspecting post-paste deposition, post-place component presence, post-reflow solder joints, post-wave through-hole, conformal coating coverage, or final assembly before pack-out, Roboflow extends your QC coverage to every unit on the line, validatable under IPC-A-610 and J-STD-001.

Deep-Learning AOI on the SMT Line:

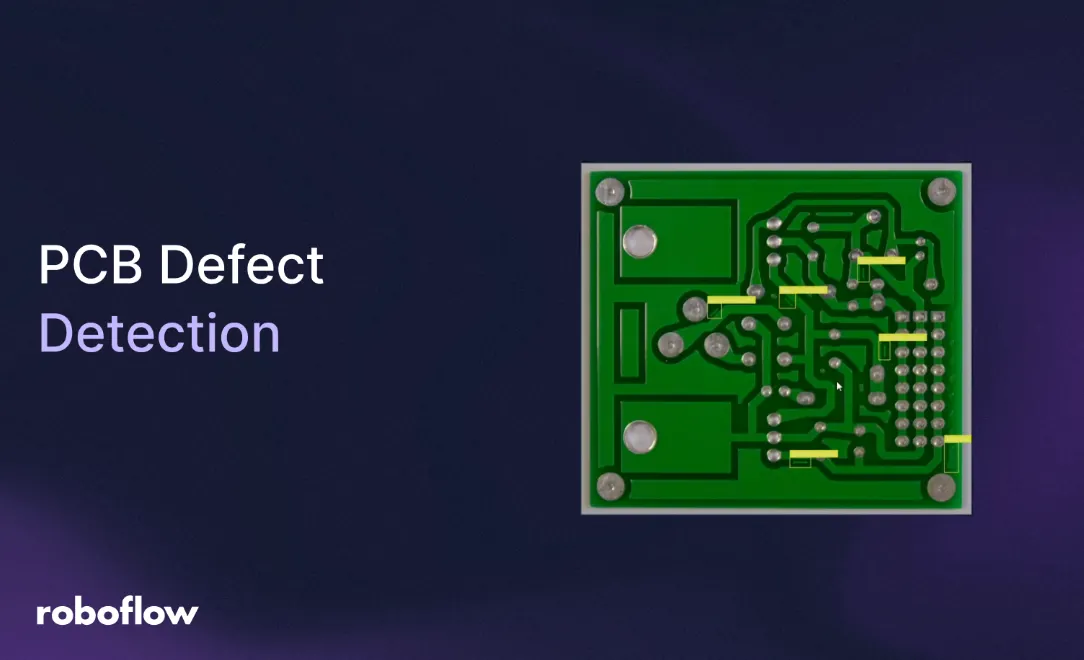

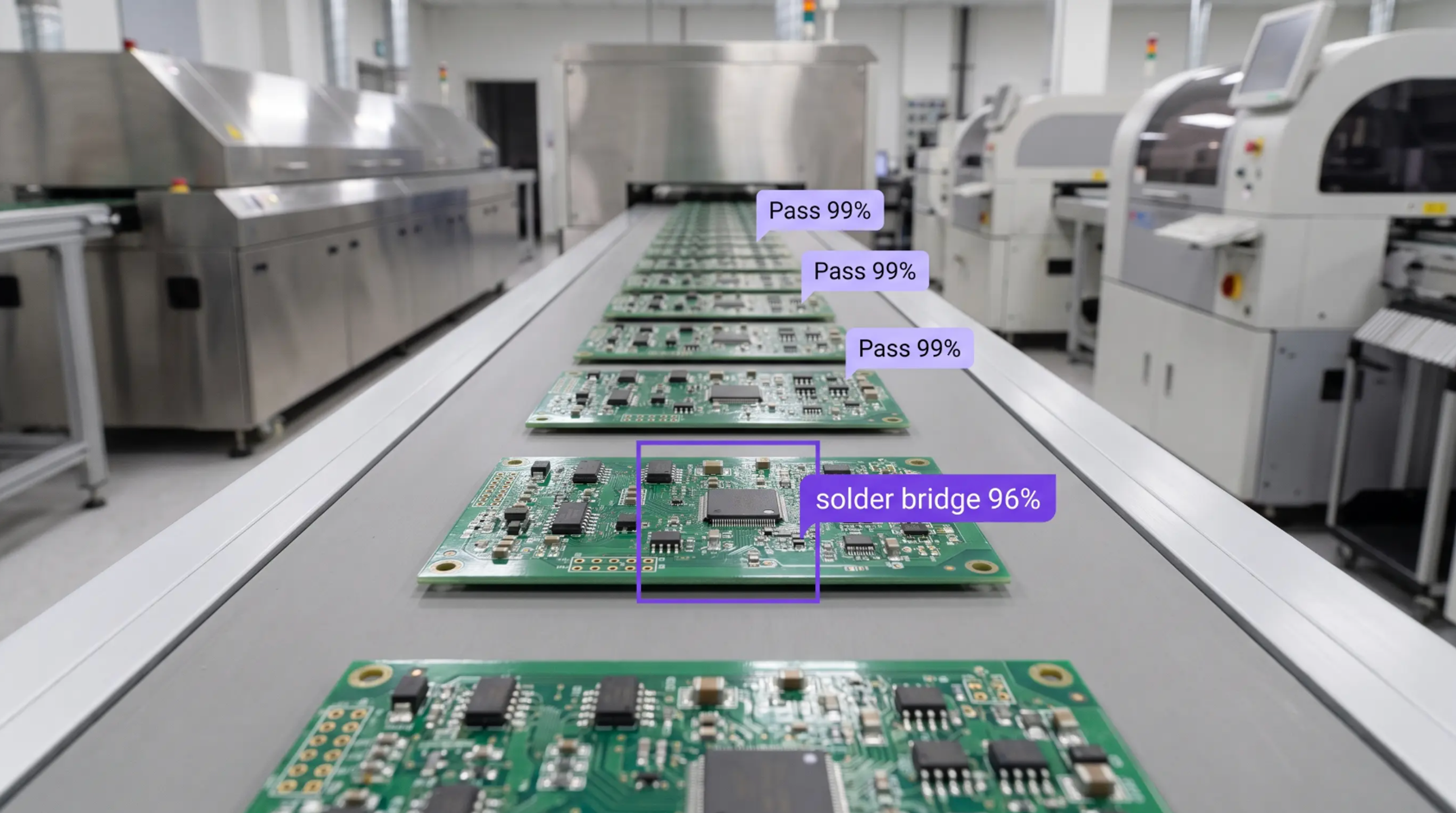

• Catch solder bridges, insufficient solder, solder voids, cold joints, and tombstoning across chip passives, QFN, SOIC, QFP, and BGA packages on every populated board
• Verify component presence, correct part, and polarity orientation on polarized capacitors and ICs against the BOM, at line speed
• Inspect solder paste deposition and pre-reflow placement so defects get caught before the oven bakes them in

False Call Reduction and AOI Co-Pilot:

• Co-pilot existing AOI and AVI machines (Koh Young, ViTrox, Saki, Mirtec, Omron) with deep-learning verification on borderline rejects, so over-sensitive thresholds stop turning good boards into scrap and review queues
• Train models on your actual board appearance and lot-to-lot variation instead of hand-tuned templates, and cut the reprogramming burden every NPI and BOM revision brings
• Focus operator attention on true defects, with confidence scores and imagery attached to every flagged unit

AOI Beyond the Board: Coating, Assembly, and Marking:

• Verify conformal coating coverage, final assembly completeness, connector seating, and cable routing on finished units
• Read and verify part markings, date and lot codes, serial numbers, and labels with industrial OCR on every unit that ships
• Trigger reject gates and rework-station routing in real time through PLC and MES integration, with a full audit trail behind every decision

Bring intelligence to every unit today. Stop escaped defects and false-call scrap from becoming field returns, chargebacks, or recalls.

‍

More About Automated Optical Inspection

What is automated optical inspection (AOI) with Vision AI?

Automated optical inspection uses cameras and image analysis to inspect products as they move down the line, without contact and at production speed. In electronics manufacturing, AOI checks solder joints, component presence, placement, and polarity on every board that passes the station. Vision AI extends traditional AOI with deep-learning models trained on your actual production imagery, so the system handles the appearance variation, new board revisions, and subtle defect morphologies that rule-based templates struggle to keep up with, and maintains inspection records that support IPC-A-610 and J-STD-001 acceptance criteria.

Can Vision AI cut AOI false calls?

False calls are where SMT lines feel the most pressure: thresholds tightened enough to catch every real defect flood operators with good boards flagged for review, and every NPI resets the tuning work. Deep-learning models trained on your real board appearance and lot-to-lot variation separate true defects from cosmetic variation far better than fixed templates, and can run as a verification layer on your existing AOI machine's borderline rejects, so your installed machines keep their measurement role while Roboflow models judge appearance and catch what templating misses.

Does automated optical inspection support IPC-A-610 and J-STD-001?

Yes. Roboflow models can be trained against your specific IPC-A-610 (Acceptability of Electronic Assemblies, covering Class 1, 2, and 3 quality levels) and J-STD-001 (Requirements for Soldered Electrical and Electronic Assemblies) acceptance criteria, alongside IATF 16949 for automotive electronics, AS9100 for aerospace electronics, and ISO 13485 for medical electronics quality systems. Roboflow is the inspection engine; your quality and regulatory teams own the acceptance criteria, and the platform maintains the training data lineage, model versions, and inspection records that customer audits and PPAP submissions ask for.

Can it integrate with our AOI machines, SMT line PLCs, and MES?

Yes. Roboflow Inference exposes a standard API and supports common industrial protocols, so AOI events flow into your existing systems: AOI and AVI machines from Koh Young, ViTrox, Saki, Mirtec, and Omron, SMT MES platforms like Cogiscan, Aegis FactoryLogix, and Critical Manufacturing, eQMS platforms like MasterControl and ETQ Reliance, and ERP systems like SAP and Oracle, through REST, MQTT, OPC UA, and direct database writes. PLC-level integration drives conveyor gates, reject decisions, and rework routing where pass/fail needs to control line behavior, and models support IQ/OQ/PQ documentation and full audit trails for regulated programs.

‍
