Terminal Crimp Inspection AI

Add a real-time inspection layer to every crimp with vision AI for terminal crimp inspection. Built for the operations where the pull tester blesses a sample at hour one while the applicator wears through hour four, a single strand folded back outside the barrel waits in a door harness to become a warranty claim, or the crimp that fails is on the circuit that fires an airbag. Whether you're running high-volume crimp presses, lead prep benches, or final harness assembly, Roboflow inspects the crimp zone on every terminated lead at line rate, with a per-crimp record behind every pass.

Crimp Zone Defects:

• Verify bellmouth and brush on every crimp, the geometry that pull tests can only sample

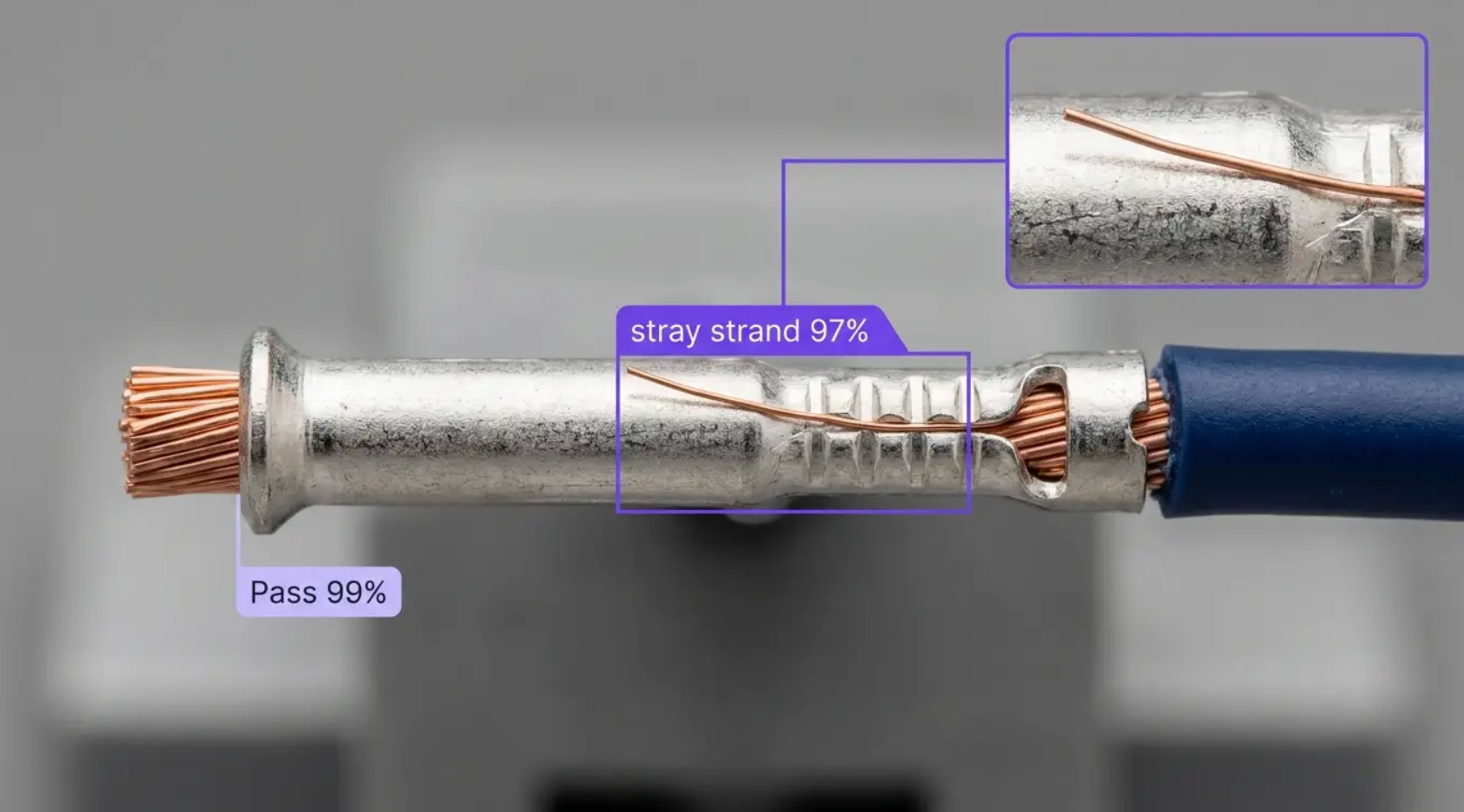

• Catch missing, stray, and folded strands, including the one strand outside the barrel that becomes a short
• Detect insulation crimped into the conductor zone and conductor exposed in the insulation grip, on every wire gauge and color you run

Terminal and Seal Condition:

• Flag banana, rolled, and twisted terminals before they jam a connector cavity or bend a mating pin
• Catch damaged locking lances and deformed carriers that turn into seated-short terminals downstream
• Verify seal presence and position on sealed circuits, where a missing seal is invisible after insertion

Presses, Benches, and Systems Integration:

• Inspect at the press, complementing crimp force monitors with the visual attributes force curves can't see
• Trend defects by applicator, tooling, and shift, so tooling wear reaches maintenance as an early warning instead of a containment
• Route failed leads out in real time through press and PLC integration, with per-crimp records tied to lead, lot, and applicator

Bring intelligence to every crimp today. Stop crimp defects from becoming field intermittents, safety-circuit failures, or containments traced to one worn tool.

‍

More About Terminal Crimp Inspection

What is terminal crimp inspection with Vision AI?

Terminal crimp inspection with vision AI uses computer vision models to inspect the crimp zone on every terminated lead: bellmouth and brush, strand condition, insulation position, terminal deformation, and seal presence. Models trained on your actual terminals, wire gauges, and applicators inspect every crimp at line rate rather than the pull-test sample, with per-crimp records tied to lead, lot, and applicator that support IPC/WHMA-A-620 and USCAR-21 documentation.

Can Vision AI see strand-level detail on small-gauge crimps?

Crimp zones are the hard case: strands finer than a hair on small-gauge wire, bright tin and copper throwing specular glare, and the difference between an acceptable brush and a stray strand measured in fractions of a millimeter. Deep-learning models trained on your actual crimps and imaging setup learn each terminal family's correct geometry across gauges and colors, hold that judgment through shift-long lighting and tooling drift, and flag borderline crimps for review instead of guessing, so the marginal crimp gets a second look instead of a free pass.

Does crimp inspection replace pull testing and crimp force monitoring?

No, and the page says so plainly: pull testers and crimp height micrometers remain the destructive and dimensional instruments of record, and crimp force monitors keep watching every cycle's force curve. Vision AI adds the visual attribute layer those tools can't see, bellmouth, brush, stray strands, insulation position, and seal presence, on every crimp rather than a sample, with trend data by applicator that turns tooling wear into scheduled maintenance. All three feed the same quality record.

Can it integrate with our crimp presses, PLCs, and MES?

Yes. Roboflow Inference exposes a standard API and supports common industrial protocols, so crimp inspection events flow into your existing systems: crimp presses and applicator monitors, line PLCs from Allen-Bradley and Siemens, MES and ERP platforms like SAP and Oracle, and SCADA and HMI platforms like Ignition and AVEVA, through REST, MQTT, OPC UA, and direct database writes. Press-level integration rejects failed leads the moment a crimp fails, and every event carries lead, lot, applicator, and imagery, with a full audit trail behind every crimp.

‍
