Robotic Paint Booth Monitoring AI

Add a real-time monitoring layer inside the booth with Roboflow vision AI for robotic paint booth monitoring. Built for automotive and industrial paint shops where robots apply primer, basecoat, and clearcoat to every body, a drip from a loaded bell cup or a dirty robot cover lands on a panel in seconds, and the defect is found at the inspection deck only after the oven has baked it in.

Drips and sags in the booth:

• Detect drips falling from robots, bell cups, guns, and booth fixtures onto the body as they happen.

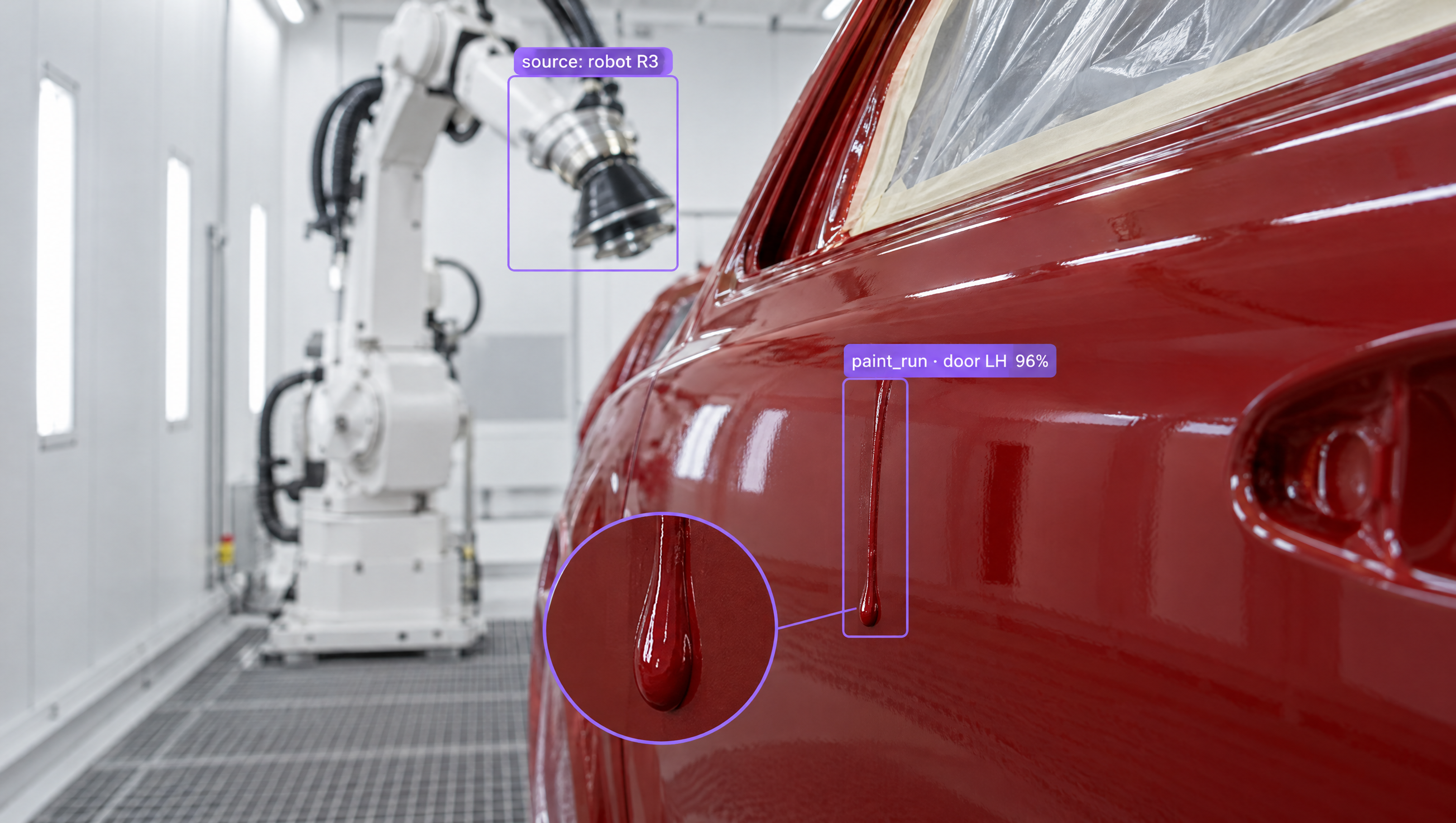

• Flag sags and runs forming on doors, fenders, and rockers before the body leaves the booth.
• Tie each event to the body, zone, and robot, so the body is flagged for repair and the robot is checked before the next body.

Robots and spray equipment:

• Watch the bell cup and gun spray pattern for spitting, an uneven fan, and blocked nozzles.
• Detect paint buildup on robot arms, covers, and bell cups before it becomes the next drip.
• Spot robots painting outside their zone, and flag anything unusual in the booth with anomaly detection.

Patterns and root cause:

• Trend drips and sags by robot, zone, color, shift, and time since the last cleaning.
• Save a clip of every event so process engineers see what the robot was doing when it happened.
• Send events to a PLC to flag the body, stop the line, or call for a robot cleaning.

Bring intelligence to every paint booth today. Stop drips and sags from becoming spot repairs, repaints, and lost first-run yield.

‍

Frequently asked questions

What is robotic paint booth monitoring with Vision AI?

Robotic paint booth monitoring with Vision AI uses cameras inside the booth, along the robot zones and at the booth exit, and a trained computer vision model (opens in a new tab) to catch drips, sags, and spray faults while the body is being painted, and to tie each event to the body, zone, and robot. It works upstream of automotive paint defect detection, which inspects the finished surface after the oven, and alongside powder coating inspection for coated parts.

How is it different from paint defect inspection after the oven?

Inspection after the oven tells you a body has a defect. Monitoring in the booth tells you which robot caused it, when, and why, so the cause is fixed before it repeats on the next bodies instead of being found hours later at the inspection deck.

Can cameras run inside a paint booth?

Yes. Booth cameras sit in purged or explosion-proof housings rated for the booth's hazardous location classification, with clear lens covers that are cleaned or swapped on a schedule, and Roboflow runs on the video they send over RTSP streams.

Can it integrate with our paint shop controls, MES, and quality systems?

Yes. Roboflow writes events to a PLC tag over OPC UA or MQTT so the line can flag the body or call for a robot cleaning, and sends clips and event data over REST (opens in a new tab) or to a database for MES and paint shop quality systems.

Roboflow serves as the monitoring engine, and your paint process and quality teams own the limits, alarms, and response.

‍
