Needle Tip Inspection AI

Add a real-time inspection layer to every needle with vision AI for needle tip inspection. Built for the lines where a tip is three ground facets meeting at a point fractions of a millimeter wide, a hook shows itself only at the angle the light happens to catch, and the defect that escapes is discovered one injection at a time. Whether you're grinding cannulas, staking hubs, or packaging finished devices, Roboflow inspects every tip, shaft, and hub at line speed, with per-lot records behind every shipment.

Tips and Bevels:

• Catch hooks, barbs, and burrs at the tip on every needle, not a sampled few
• Judge bevel facets, point condition, and blunt or rolled tips against each gauge's normal geometry
• Flag grinding residue and debris at the tip before packaging seals it in

Cannulas, Hubs, and Assembly:

• Detect scratches, bends, and kinks along the cannula on every device
• Verify hub staking, adhesive fill, and needle height and alignment at assembly
• Hold judgment across gauges, point styles, and product families, from pen needles to introducers

Lines, Grinders, and Systems Integration:

• Trend findings by grinder, wheel, and station, so a dulling wheel shows up in tip geometry before it shows up in penetration-force tests
• Keep imagery on every disposition, so when a complaint arrives, the lot's images answer it
• Route devices in real time through PLC and MES integration, with per-lot records that support ISO 13485 and 21 CFR 820 documentation

Bring intelligence to every needle today. Stop tip defects from becoming complaint files, plant-wide CAPAs, or the recall in a product people use on themselves daily.

‍

More About Needle Tip Inspection

What is needle tip inspection with Vision AI?

Needle tip inspection with vision AI uses computer vision models to inspect needles through grinding, assembly, and packaging: hooks, barbs, and burrs at the tip, bevel and point condition, scratches, bends, and kinks along the cannula, hub staking and needle alignment, and debris before packaging. Models trained on your actual needles inspect every device at line speed, with per-lot records that support ISO 13485, FDA 21 CFR 820, and ISO 7864 documentation.

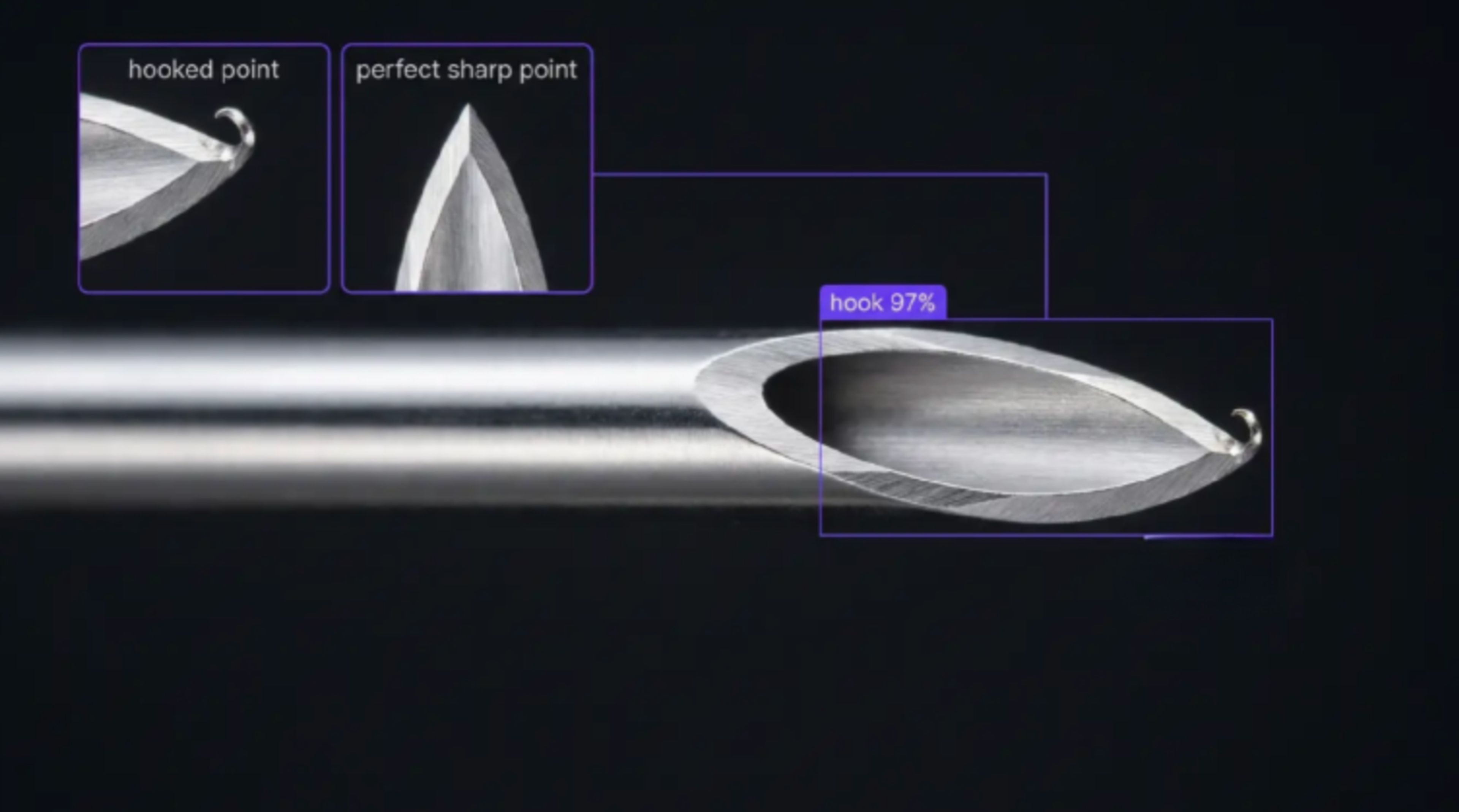

Can Vision AI see a hook on a needle tip at line speed?

The needle tip is the scale-and-specular hard case at once: three ground facets meeting at a point fractions of a millimeter wide, polished steel that throws glare from every angle, a hook or burr that reveals itself only in the right light, and thousands of needles an hour. Deep-learning models trained on your actual needles, gauges, and lighting geometry learn each point style's normal facets and edges, flag the tip that breaks them, hold that judgment across gauges and product families, and route uncertain needles to review instead of guessing, at speeds and magnifications a microscope bench was never going to hold.

Does this replace penetration force testing and optical metrology?

No. Penetration force testing keeps the functional record, run on sampled needles, and optical metrology keeps owning bevel angles and lengths for qualification. Vision AI adds the every-needle judgment those methods can't give you: the hook on a needle that was never going to be sampled, the burr that passes a force test at time zero and shears in use, the bent cannula staked into a hub, on every device instead of the sacrificed few. Force data, metrology, and visual findings land in the same per-lot record, and a drifting trend in tip geometry usually reaches the grinder before the force tester feels it.

Can it integrate with our grinders, assembly PLCs, and MES?

Yes. Roboflow Inference exposes a standard API and supports common industrial protocols, so needle inspection events flow into your existing systems: grinder and assembly line PLCs from Allen-Bradley and Siemens, MES and ERP platforms like SAP and Oracle, and SCADA and HMI platforms like Ignition and AVEVA, through REST, MQTT, OPC UA, and direct database writes. PLC-level integration rejects a needle the moment a check fails, and every event carries lot, line, station, imagery, and disposition, with a full audit trail behind every shipment.

‍
