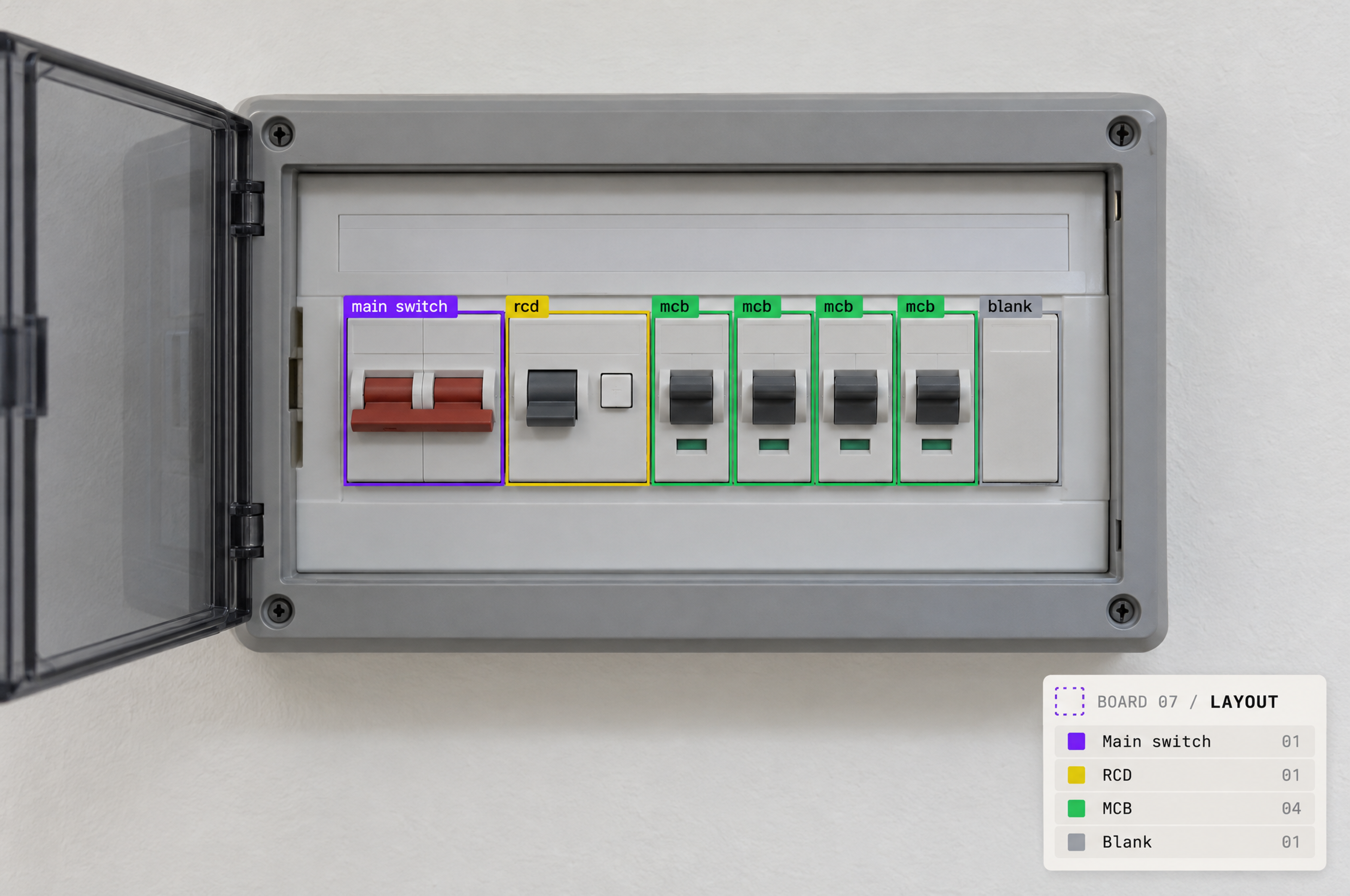

How do I identify electrical distribution board components with computer vision?

Key facts

What you need

Panel photos and a model trained on your breaker types

What you get

Each breaker found, in panel order, with its amp rating read

Image sources

Phone and tablet photos taken on site

Runs on

Cloud API, or a laptop or server running Docker

How to build breaker panel detection, step by step

Six steps from a photo of a breaker panel to every breaker listed in order.

1. 01

   Connect Roboflow to your coding agent, ChatGPT or Codex

   Add the Roboflow MCP server to Claude, Cursor or Gemini CLI, or install the Roboflow plugin in ChatGPT or Codex. Your assistant can then upload and auto-label panel photos, start training, build the Workflow and run the model from a prompt, at no extra cost beyond your Roboflow plan.

2. 02

   Photograph each panel straight on

   Take each photo square to the panel, with the door open and the dead front cover left in place, in good light. Include the panel brands and sizes you see on your jobs.

3. 03

   Label each breaker type as its own class

   Draw a box around every component and give each type its own class, such as main breaker, breaker, GFCI breaker, AFCI breaker and blank filler. Roboflow Annotate can pre-label photos with SAM 3, and public breaker datasets on Roboflow Universe can give you a head start.

4. 04

   Train a detection model

   Train an object detection model such as RF-DETR on your labeled panel photos with Roboflow Train, and test it on panels it has not seen.

5. 05

   List the breakers in panel order

   Run the model on a panel photo, split the breakers into the left and right columns, and sort each column from top to bottom, so the list follows the layout of the panel.

   PythonCopy

   import numpy as np
   import supervision as sv
   from inference import get_model

   model = get_model("your-project/1")
   result = model.infer("panel_07.jpg", confidence=0.4)[0]
   detections = sv.Detections.from_inference(result)

   breakers = detections[detections.data["class_name"] != "main_breaker"]
   centers = breakers.get_anchors_coordinates(sv.Position.CENTER)
   is_left = centers[:, 0] < (centers[:, 0].min() + centers[:, 0].max()) / 2
   for side, mask in (("left", is_left), ("right", ~is_left)):
       column = breakers[mask]
       print(side, column[np.argsort(column.xyxy[:, 1])].data["class_name"].tolist())
   # left ['breaker', 'breaker', 'gfci_breaker', 'breaker']
   # right ['afci_breaker', 'breaker', 'breaker', 'blank']

   Rather not write code? Ask the Roboflow agent to set this up for you →

6. 06

   Read each breaker's amp rating with OCR

   Build a Workflow that crops each detected breaker with the Dynamic Crop block and reads its rating with the OCR Model block, such as 15 or 20. Run it on every panel photo with Roboflow Deploy.
