Heat Exchanger Coil Inspection AI

Add a real-time inspection layer to every coil with vision AI for heat exchanger coil inspection. Built for the lines where a section of crushed fin costs face airflow that nobody measures until the lab does, a hairpin that seated short passes every visual check because the fin pack hides it, and the capacity margin you hold against your published rating gets spent by defects nobody trended. Whether you're building residential condenser and evaporator coils, commercial and rooftop coils, or refrigeration and process coils, Roboflow inspects every coil at line rate on the cameras your line already runs, with a per-coil record behind every acceptance.

Fin Condition and Density:

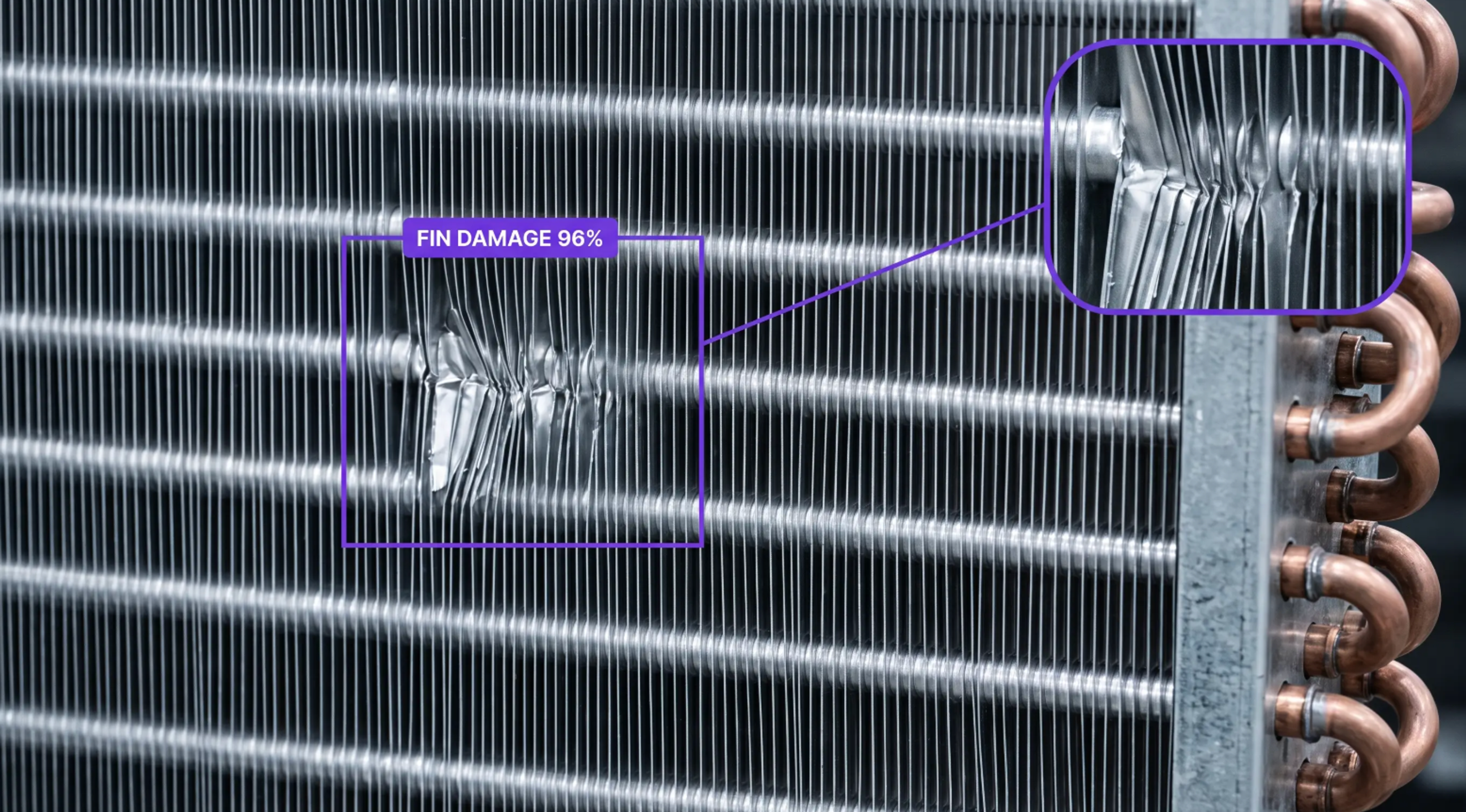

• Detect bent, crushed, folded, and torn fins across the coil face, including the handling damage that happens between stations rather than at one
• Flag fin density drift and spacing gaps against the specification for that coil, so a press or a pack problem surfaces as a trend rather than a lab surprise
• Catch fin collar damage and burrs that compromise the tube-to-fin contact the coil's performance depends on

Tubes, Hairpins, and Insertion:

• Verify every tube is present and fully inserted, and catch the hairpin that seated short or missed a row
• Detect kinks, flat spots, wrinkles, and scoring on hairpin bends before the pack closes around them
• Check tube end preparation, belling, and roundness ahead of return bend brazing

Coil Face, Contamination, and Records:

• Flag foreign material lodged in the fin pack, from fin scrap and swarf to shop debris, before it ships inside a sealed unit
• Verify coil face squareness, tube sheet and end plate alignment, and header and distributor position against the build
• Trend defects by station, press, tooling, and shift, and keep a per-coil image record that supports certification documentation and warranty investigation

Bring intelligence to every coil today. Stop a crushed fin from becoming lost capacity, a short-seated hairpin from becoming a field callback, or a drifting line from becoming a rating problem.

‍

More About Heat Exchanger Coil Inspection

What is heat exchanger coil inspection with Vision AI?

Heat exchanger coil inspection with vision AI uses computer vision models to inspect coils as they move through the line, catching the conditions that decide whether a coil performs to specification: bent, crushed, and torn fins, fin density and spacing drift, damaged fin collars, tubes that are missing or seated short, kinked and flat-spotted hairpins, foreign material in the fin pack, and coil face and header alignment. Models trained on your own coils learn your fin densities, tube patterns, and depths rather than a generic reference, and every flag carries the frame behind it. The output is a per-coil record and a defect trend by station and shift, which is what turns a scattered scrap problem into a fixable process one.

Can Vision AI verify tube expansion, and can it count fins reliably?

Tube expansion is the harder one: a camera can see the consequences of over-expansion, including splits, bulges, and distorted fin collars, but it cannot measure whether the tube-to-fin thermal bond was actually achieved. That is a mechanical measurement, from expansion force and post-expansion inside diameter, or from destructive pull testing on a sample. A coil that was under-expanded looks entirely normal and simply underperforms, so vision belongs alongside your expansion process controls rather than in place of them. Fin counting is achievable but is an optics problem before it is a model problem: a fin pack at twelve to twenty fins per inch is a fine repeating structure, and imaging it carelessly produces moiré artifacts that will defeat any model. It works with the right resolution, angle, and lighting geometry against the fin edges, and it is worth scoping that properly at the start rather than discovering it in a pilot.

Does coil inspection support AHRI certification and DOE efficiency ratings?

It supports them rather than satisfies them. AHRI certification under 210/240, 340/360, and 410 rests on laboratory performance testing of sampled units to defined test methods, and DOE efficiency ratings follow from that testing; no in-line inspection substitutes for the lab. Where coil inspection earns its place is upstream: rated performance assumes coils built to specification, and fin damage, density drift, and seating defects erode the capacity margin that certification depends on. Continuous inspection with per-coil records gives performance engineering evidence that the coils behind a rating were built to the spec that was tested, and gives quality a trend to act on before a challenge test or a lab retest. Your performance and quality teams own the rating and the acceptance criteria; Roboflow is the inspection engine underneath.

Can it integrate with our MES and coil line controls?

Yes. Coil-level results, defect classes, and pass and fail states push into MES and quality systems like SAP, Ignition, Wonderware, and AVEVA through REST, MQTT, OPC UA, and direct database writes, so a flagged coil carries its record into the unit build rather than disappearing into a bin. Results can tie to the coil serial or traveler read by the same camera or a barcode station, so defects trend against the press, the tooling, the expansion station, and the shift behind them. At the line level, pass and fail can drive PLC logic to divert a coil to rework before it reaches leak test or unit assembly, and imagery can write to a historian for certification documentation and warranty investigation.

‍
