Barcode Verification AI

Add a real-time grading layer to every barcode with Vision AI for barcode verification. Built for the operations where one Grade F barcode on an outbound case, a decodability sub-parameter failure on an FDA UDI label, a symbol contrast drop that fails Walmart supplier verification, or a print-head drift that turned a passing sampled lot into a failing full run can mean a retailer chargeback that arrives six weeks after the shipment ships, a Class II recall on a mis-labeled medical device or pharma unit dose, a full-run reprint at a label converter, a DSCSA aggregation event when the pallet barcode grades below acceptance, or an IATF 16949 or AS9100 audit finding on missing verifier evidence. Whether you're grading at press exit on flexo, offset, and digital press output, at print-and-apply stations, at packaging line reads, at sortation induction, at dock arch outbound, or at WIP station fixtures on DPM parts across label converters, folding carton mills, flexible packaging producers, pharma contract packagers, medical device manufacturers, automotive suppliers, aerospace manufacturers, food and beverage packagers, and CPG bottlers, Roboflow extends grading coverage to every barcode on every unit, on the cameras and inspection stations your facility already runs.

Verifier-Equivalent Grading Per Standard:

• Grade every 1D barcode per ISO/IEC 15416 with the full sub-parameter set: decode, decodability, defects, modulation, symbol contrast, minimum reflectance, minimum edge contrast, and quiet zone, producing A through F overall grades that map to ANSI X3.182 for retailer and GS1 acceptance
• Grade every 2D barcode (DataMatrix, QR, Aztec, PDF417) per ISO/IEC 15415 with the full sub-parameter set: decode, contrast, modulation, fixed pattern damage, axial non-uniformity, grid non-uniformity, and unused error correction, producing A through F grades to GS1 General Specifications and FDA UDI acceptance
• Report every grade with the aperture, wavelength, and angle used, matching ISO/IEC 15426-1 and 15426-2 verifier conformance so the record stands up to retailer and regulator audit next to a dedicated verifier report

Every-Unit Coverage vs. Sampled-Lot Verification:

• Grade every barcode on every unit that leaves the press, the print-and-apply station, or the packaging line, not just the 3 to 5 samples pulled per lot for a dedicated verifier bench

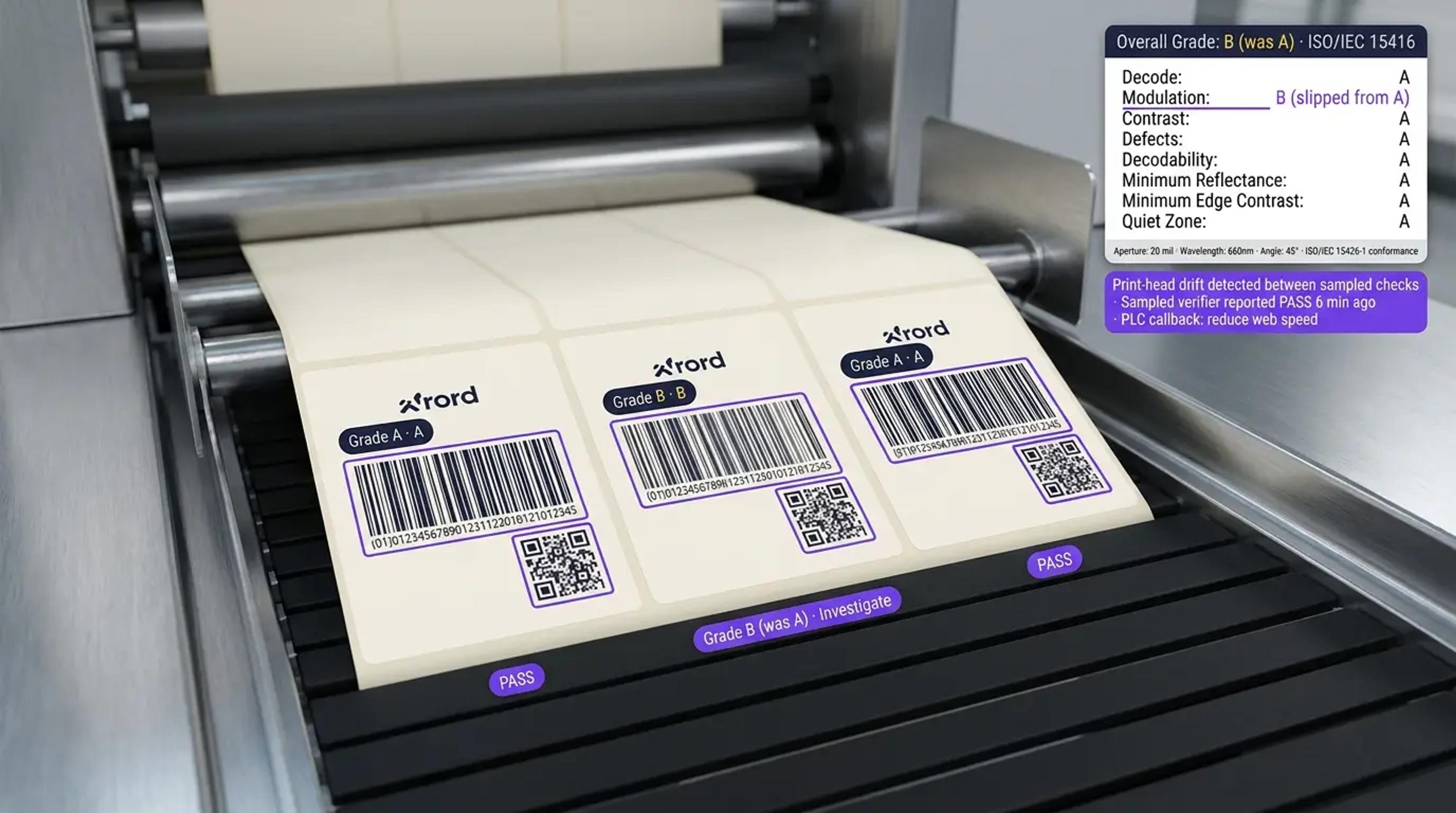

• Catch print-head drift, ink starvation, substrate variation, and doctor-blade wear the moment the grade slips below the acceptance threshold, not the next time a sample happens to include the affected slice of the run
• Log every grade with confidence, image crop, sub-parameter scores, timestamp, station ID, and operator ID for supplier chargeback defense, FDA UDI record, DSCSA aggregation record, and IATF 16949 or AS9100 traceability

Retailer, Regulator, and Supplier Compliance:

• Meet Walmart supplier verification, Amazon FBA barcode quality (Grade C minimum), Target and Home Depot vendor barcode specs, and GS1 US Vendor Verifier Program requirements with per-unit grades and audit records
• Meet FDA UDI barcode requirements (Grade C minimum on device labels), DSCSA serialization grading on pharma unit doses and aggregation labels, and MIL-STD-130 UID/IUID grading on defense parts, all with the same platform
• Co-pilot existing dedicated verifiers (Axicon, REA VeriCube, Stratix, Honeywell) by adding an every-unit grading layer that catches drift between sampled-lot checks, so the verifier report and the every-unit grade tell the same story at audit

Bring intelligence to every barcode today. Stop Grade F escapes, sub-parameter drift, and sampled-lot blind spots from becoming retailer chargebacks, FDA UDI compliance events, DSCSA events, or full-run reprints.

‍

More About Barcode Verification

What is barcode verification with Vision AI?

Barcode verification with Vision AI uses computer vision models to grade every barcode on every unit against ISO/IEC 15415 (2D barcode print quality) and ISO/IEC 15416 (1D barcode print quality) with the full sub-parameter set (decode, decodability, defects, modulation, symbol contrast, minimum reflectance, quiet zone for 1D; decode, contrast, modulation, fixed pattern damage, axial non-uniformity, grid non-uniformity, unused error correction for 2D), producing verifier-equivalent A through F grades with aperture, wavelength, and angle metadata matching ISO/IEC 15426-1 and 15426-2 verifier conformance. Coverage spans 1D barcodes (Code 128, Code 39, EAN, UPC, ITF-14), 2D codes (DataMatrix, QR, Aztec, PDF417), direct part marking (DPM), and every stage of print and application (press exit, print-and-apply, packaging line, sortation, dock, WIP, MRO). Label converters, folding carton mills, flexible packaging producers, pharma contract packagers, medical device manufacturers, automotive suppliers, aerospace manufacturers, food and beverage packagers, and CPG bottlers use it to catch Grade F escapes before shipment, defend supplier chargebacks with per-unit evidence, meet FDA UDI (Grade C minimum) and DSCSA serialization grading, satisfy Walmart supplier verification and Amazon FBA barcode quality, and document compliance under GS1 General Specifications, GS1 US Vendor Verifier Program, ANSI X3.182, IATF 16949, AS9100, and MIL-STD-130 UID/IUID.

Can Vision AI produce ISO/IEC 15415 and 15416 grades that stand up next to a dedicated verifier report?

Yes. Verifier-equivalent grading from production cameras is exactly where sampled-lot verifier workflows feel the most pressure. Dedicated verifiers (Axicon, REA VeriCube, Stratix, Honeywell) excel at producing an ISO/IEC 15415 or 15416 report on a small sample pulled from a run, but by definition they only see 3 to 5 samples per lot, they do not catch print-head drift or ink starvation between samples, and they require operator time at a bench that competes with line time. Roboflow models are trained on your actual press output, real substrate mix, and real lighting, and produce full sub-parameter grades on every unit with the aperture, wavelength, and angle metadata that maps to ISO/IEC 15426-1 verifier conformance, so the every-unit grade record and the sampled-lot verifier report reconcile at audit. The honest tradeoff: a dedicated verifier remains the reference instrument for lab-condition verifier reports, and Roboflow is positioned as the every-unit co-pilot that catches drift the sampled report cannot see, produces per-unit evidence for supplier chargeback defense, and cuts operator time at the verifier bench.

Does barcode verification support FDA UDI, DSCSA, GS1, Walmart supplier verification, and MIL-STD-130 UID/IUID?

Yes. Roboflow models can be trained to grade against ISO/IEC 15415 (2D barcode print quality), ISO/IEC 15416 (1D barcode print quality), ISO/IEC 15426-1 (verifier conformance for 1D), ISO/IEC 15426-2 (verifier conformance for 2D), ANSI X3.182 (older US grading, still cited by retailer specs), GS1 General Specifications, GS1 US Vendor Verifier Program (barcode quality validation for suppliers to US retailers), FDA UDI (medical device labeling requires Grade C minimum on the device label barcode), DSCSA serialization and aggregation grading for pharma, EU FMD, Walmart supplier verification (barcode quality validation on inbound cases), Amazon FBA barcode quality (Grade C minimum on FBA-prepped items), Target and Home Depot vendor barcode specifications, IATF 16949 for automotive traceability, AS9100 for aerospace, MIL-STD-130 UID/IUID for military and defense part marking (Grade B minimum on DoD IUID codes), and customer-specific PPAP submissions and OEM traceability requirements. The system reads and grades every scan against the pass/fail thresholds your quality and traceability teams already use and produces validated grading records that support retailer audits, GS1 US audits, FDA UDI compliance, DSCSA audits, DoD UID/IUID compliance, IATF 16949 and AS9100 registrar audits, and customer PPAP submissions.

Can it integrate with our MES, eQMS, PLC, and existing dedicated verifier workflows?

Yes. Roboflow Inference exposes a standard API supporting common manufacturing and packaging protocols. Customers integrate with MES platforms (Rockwell PharmaSuite, Werum PAS-X, Siemens Opcenter, GE Proficy, Ignition, Wonderware, AVEVA), eQMS (MasterControl, Veeva Vault QMS, Sparta TrackWise, ETQ Reliance), print-and-apply from Videojet, Domino, Markem-Imaje, and ID Technology, packaging inspection from Antares Vision, Systech, Optel, and METTLER TOLEDO, PLC control (Rockwell, Siemens, Beckhoff, Allen-Bradley), existing dedicated verifiers (Axicon, REA VeriCube, Stratix, Honeywell) for reference-instrument reconciliation, and ERP (SAP, Oracle, NetSuite, Infor) through REST, MQTT, OPC UA, and direct database writes. Models support PLC-level pass/fail for reject arms on borderline grade slips, andon and station-release triggers when the grade drops below the retailer or FDA threshold, IQ/OQ/PQ documentation, audit trails, and grading records that pass FDA UDI audits, DSCSA audits, Walmart supplier verification, Amazon FBA prep audits, IATF 16949 and AS9100 registrar audits, and DoD MIL-STD-130 UID/IUID audits.

‍
