Weld Nut and Stud Detection AI

Add a real-time verification layer to every panel with vision AI for weld nut and stud detection. Built for the operations where a projection welder that skipped one nut keeps cycling until final assembly finds the hole with no thread behind it, a flipped nut passes a glance because it's present, or the stud leaning eight degrees waits for the automated trim station to discover it the hard way. Whether you're running projection weld cells, stud welding on body panels, or sub-assembly lines feeding a body shop, Roboflow verifies every fastener on every panel at cell exit, with a per-panel record behind every release.

Presence and Position:

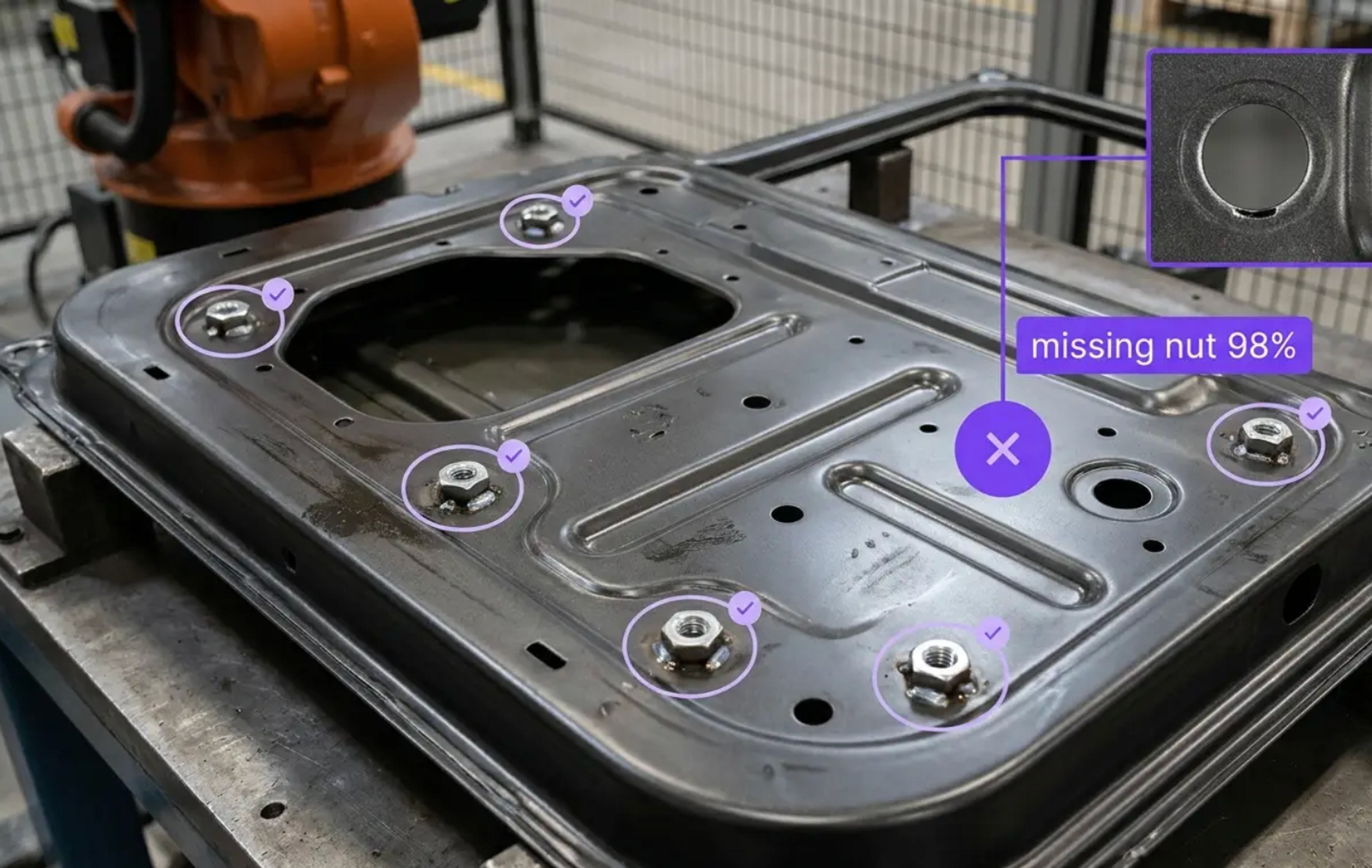

• Verify every nut and stud is present at its correct location against the panel's expected map, on every panel rather than audited ones
• Catch missing and extra fasteners the moment the panel leaves the cell, while re-welding is a cycle instead of a repair
• Flag position deviations where a nut welded off its hole guarantees a fastener failure downstream

Type, Orientation, and Condition:

• Detect wrong nut types and thread sizes, including the near-identical pairs a glance can't separate
• Catch flipped and misoriented nuts, where presence passes and function fails
• Flag bent, leaning, and damaged studs, plus heavy spatter and poor seating that interfere with assembly

Cells, Repair, and Systems Integration:

• Route failed panels to re-weld or repair in real time through PLC and cell integration, before they stack and ship
• Trend misses by weld gun and electrode, so worn tooling reaches maintenance as an early warning instead of a containment
• Keep per-panel records tied to serial and lot that support IATF 16949 documentation and customer audits

Bring intelligence to every panel today. Stop fastener misses from becoming painted-body repairs, torque failures, or line stops at final assembly.

‍

More About Weld Nut and Stud Detection

What is weld nut and stud detection with Vision AI?

Weld nut and stud detection with vision AI uses computer vision models to verify welded fasteners on stamped panels and assemblies: presence at every expected location, correct type and thread size, orientation, position, and stud condition. Models trained on your actual panels and fasteners inspect every part at weld cell exit, with per-panel records tied to serial and lot that support IATF 16949 documentation and PPAP requirements.

Can Vision AI verify dozens of fasteners on a dark, oily panel?

The stamped panel is the hard case: dozens of nuts and studs scattered across dark, oiled steel, weld spatter that mimics defects, shadowed hole locations, and nut types that differ by a millimeter of thread. Deep-learning models trained on your actual panels learn each part number's fastener map and what every correct nut and stud looks like at your cell's angles and lighting, hold that judgment across panel variants, and flag uncertain locations for a check instead of guessing, so the panel with a doubtful nut gets a second look before it ships.

Does weld nut detection support IATF 16949 and PPAP?

Yes. Roboflow models can run as documented inspection controls inside your IATF 16949 (automotive quality management) and ISO 9001 processes, with per-panel inspection records, imagery, model version history, and training data lineage that support PPAP submissions, containment reviews, and customer audits. Roboflow is the inspection engine; your quality team owns the fastener specifications and release rules.

Can it integrate with our weld cells, PLCs, and MES?

Yes. Roboflow Inference exposes a standard API and supports common industrial protocols, so fastener verification events flow into your existing systems: weld cell and line PLCs from Allen-Bradley and Siemens, MES and ERP platforms like SAP and Oracle, and SCADA and HMI platforms like Ignition and AVEVA, through REST, MQTT, OPC UA, and direct database writes. PLC-level integration routes a failed panel to re-weld the moment a fastener fails, and every event carries panel serial, cell, weld gun where derived, imagery, and disposition, with a full audit trail behind every panel.

‍
