EV Battery Module and Pack Assembly Inspection AI

Add a real-time inspection layer to every module and pack with vision AI for EV battery module and pack assembly inspection. Built for the lines where a weld that measured fine sits misplaced on its tab, the missing ribbon of thermal paste under cell nine won't announce itself until the pack runs hot, or the small hardware that fell in during assembly gets sealed under a lid nobody opens again. Whether you're stacking cells into modules, welding busbars, dressing harnesses, or closing packs, Roboflow inspects every step the lid will hide, with cell-to-pack records behind every serial.

Cells and Module Assembly:

• Verify cell presence, orientation, and polarity at stacking, where one reversed cell is a dead module at test
• Catch cell surface damage, dented cans, and pouch defects before they're built into a module
• Read cell IDs and barcodes at every step, building the genealogy record from cell to module to pack

Welds, Busbars, and Interfaces:

• Inspect busbar and tab welds visually: missed welds, misplacement, spatter, and burn-through, on every joint
• Verify thermal interface material coverage and bead placement before plates and cells meet
• Check coolant fittings, seal beads, and gasket placement before the lid makes them invisible

Pack Close-Out and Systems Integration:

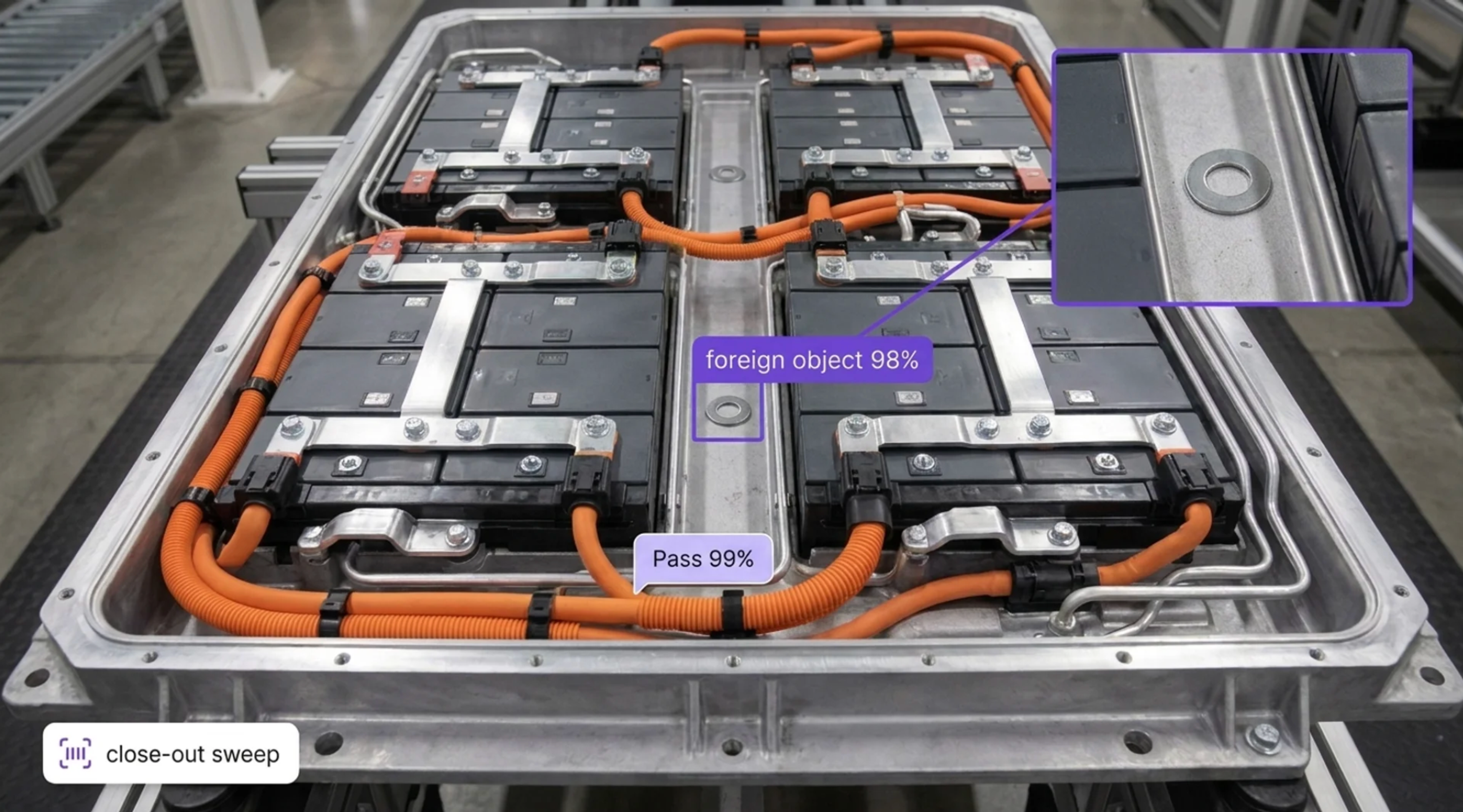

• Sweep for foreign objects before lid-close: the washer, screw, or wire clipping that must not be sealed in
• Verify harness routing, connector seating, and fastener presence across the pack, with torque marks where used
• Feed every inspection into MES genealogy through PLC integration, so each pack's record shows what was checked and what it looked like

Bring intelligence to every module today. Stop assembly defects from becoming thermal events, warranty campaigns, or recall investigations that start at your line.

‍

More About EV Battery Module and Pack Assembly Inspection

What is EV battery module and pack assembly inspection with Vision AI?

EV battery module and pack assembly inspection with vision AI uses computer vision models to inspect battery assembly at every step: cell placement, orientation, and polarity, busbar and tab weld condition, thermal interface material coverage, harness and connector checks, and foreign object sweeps before lid-close. Models trained on your actual cells, modules, and packs inspect every unit at line rate, with cell-to-pack genealogy records that support IATF 16949 and customer traceability requirements.

Can Vision AI catch foreign objects and weld defects inside a busy pack?

The open pack is the hard case: bright busbars and laser welds throwing glare, deep shadowed cavities between modules, and a foreign object that might be a washer on a background full of washers that belong there. Deep-learning models trained on your actual packs learn what belongs at every position and flag what doesn't, judge weld placement and spatter on your busbar geometry, and route uncertain findings to an inspector instead of guessing, so the last look before the lid closes is a recorded one.

How does this fit with our weld monitoring and end-of-line testing?

Laser weld monitoring keeps watching every weld's power and signal curve, and end-of-line electrical test keeps qualifying every module and pack. Vision AI adds the layer neither sees: a weld with a perfect power curve sitting half off its tab, thermal material missing under one cell that electrical test won't reveal until temperature does, and the foreign object no electrical measurement detects. All three feed the same genealogy record, which is what a recall investigator or warranty reviewer actually asks for.

Can it integrate with our module lines, PLCs, and MES genealogy?

Yes. Roboflow Inference exposes a standard API and supports common industrial protocols, so battery inspection events flow into your existing systems: module and pack line PLCs from Allen-Bradley and Siemens, MES genealogy and traceability systems, and ERP platforms like SAP, through REST, MQTT, OPC UA, and direct database writes. PLC-level integration holds a module the moment a check fails, and every event carries cell IDs, module and pack serials, station, imagery, and disposition, with a full audit trail behind every pack.

‍
