Engineering Drawing Analysis AI

Bring real-time intelligence to every drawing in the archive with Roboflow vision AI for engineering drawing analysis.

Detect symbols, blocks, and callouts on any drawing type:

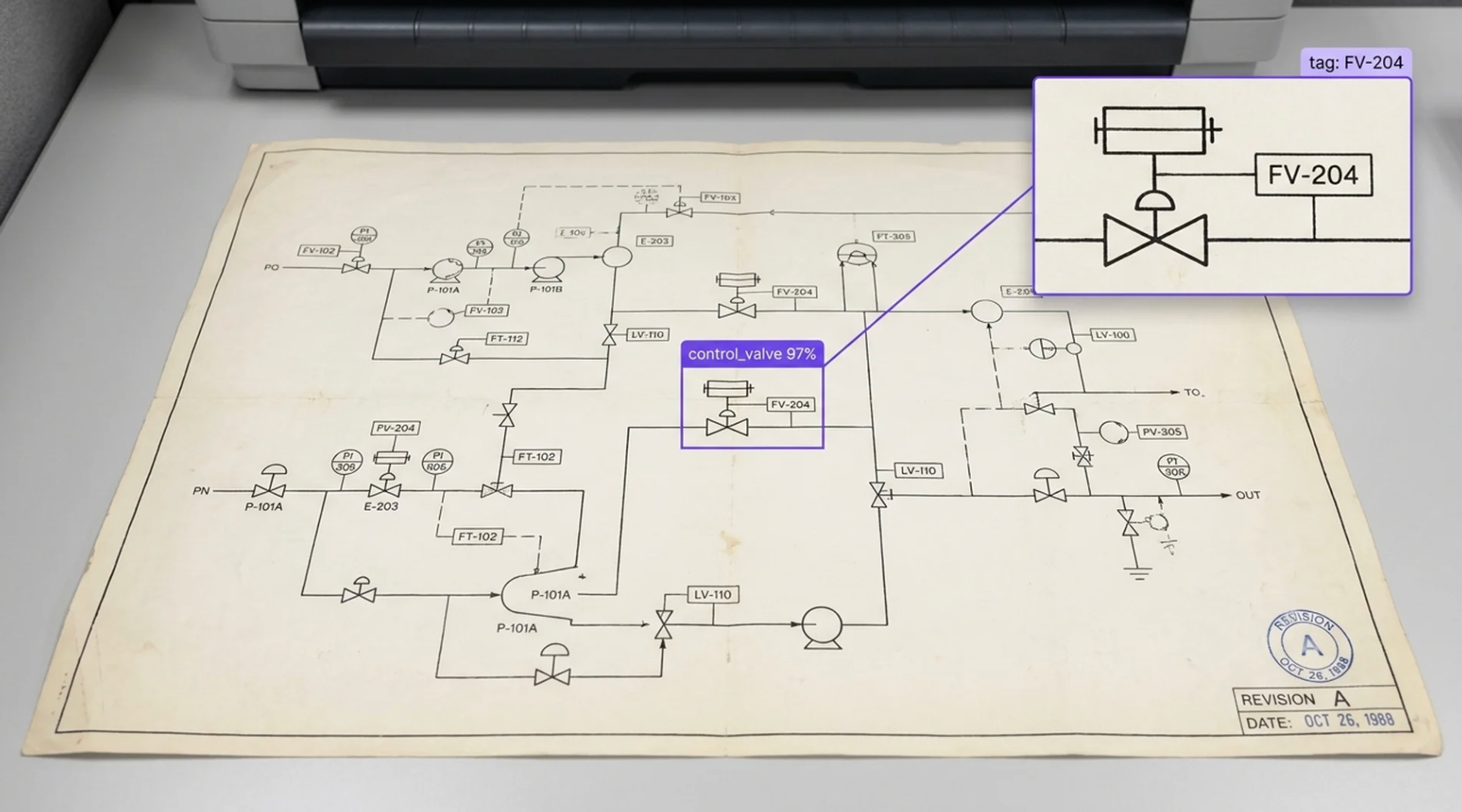

• Detect P&ID symbols (valves, pumps, instruments, line breaks), one-line diagram elements (breakers, transformers, buses), title blocks, revision blocks, section callouts, and dimension strings with an RF-DETR detection model trained on your own drawing conventions and legend sheets.
• Handle the drawings generic document OCR cannot: dense line work, rotated text, hand-drawn legacy prints, scans with fold lines and stamps, and vendor drawings that mix ISA 5.1, ISO 128, and in-house symbol libraries.
• Locate each detection with coordinates on the sheet so downstream steps know which tag belongs to which symbol and which line.

Crop, route, and extract with a vision language model:

• Crop each detected region and route it to a vision language model in a Roboflow Workflow, so the VLM reads a tag number, a tolerance, or a title block field from a clean crop instead of guessing across the whole sheet.
• Extract structured fields: tag, service, size, rating, material, revision, drawn-by, date, and GD&T callouts, returned as JSON your BOM, equipment list, or CMMS import can consume directly.
• Run the same crop-then-VLM pipeline from an MCP agent, so an engineer can ask for the equipment list on a drawing set and get a table back, with every value traceable to its crop.

Build BOMs, compare revisions, and verify as-builts:

• Roll extractions up into a BOM or equipment list per sheet, per system, or per project, and flag tags that appear on the P&ID but not in the instrument index.
• Compare two revisions symbol by symbol and text by text to surface added, removed, and changed elements that a cloud diff misses when the sheet was re-plotted or rescanned.
• Match an issued drawing against as-built site photos to confirm the installed valve, instrument, or panel matches the design intent before the punch list closes.

Stop missed symbols and misread callouts from becoming short BOMs, wrong-spec installs, and rework claims.

‍

Frequently asked questions

What is engineering drawing analysis with Vision AI?

Engineering drawing analysis with Vision AI uses a computer vision model to detect symbols, title blocks, callouts, dimensions, and tags on P&IDs, one-line diagrams, CAD exports, and scanned legacy prints, then routes each detected region to a vision language model that reads the text and returns structured fields. The result is a BOM, equipment list, or instrument index built from the drawing itself, plus revision comparisons and as-built checks that used to require an engineer reading every sheet. The pipeline is trained on your own symbol libraries and legend sheets, and its extraction rules follow the conventions in ASME Y14.5, ISO 128, ISA 5.1, and IEEE 315, with every extracted value traceable back to a crop on the sheet for ISO 9001 and ISO 19650 documentation.

Can Vision AI read scanned legacy prints and hand-drawn P&IDs, not only clean CAD exports?

A detection model trained on your own archive learns your symbol conventions, line weights, and hand lettering, and the crop-then-VLM approach means the language model reads a small, clean region rather than the whole noisy sheet, which is what makes it hold up on poor scans.

Does engineering drawing analysis support ASME Y14.5 and ISA 5.1?

Yes. ASME Y14.5 (the dimensioning and tolerancing standard that defines GD&T symbols, feature control frames, and datum references on mechanical drawings) and ISA 5.1 (the instrumentation symbols and identification standard that governs P&ID tag formats and instrument bubbles) define what the model is trained to find and how the VLM is prompted to interpret what it finds. The same approach covers ISO 128 line conventions and IEEE 315 electrical symbols on one-line diagrams. Roboflow serves as the extraction engine: it detects, crops, reads, and returns structured data with confidence scores and source coordinates. Your engineering and document control teams own the acceptance rules, the symbol library, and the decision on which fields require human sign-off.

Can it integrate with our document management system, CAD environment, and agent tooling?

Yes. Roboflow Workflows expose results over REST and can write to a database, so extracted BOMs and equipment lists flow into Autodesk Vault, Hexagon SDx, Bentley ProjectWise, Aconex, SAP, and Maximo, and drawing sets can be pulled from those systems for batch processing. Detection and extraction steps can be called from an MCP agent, so an engineer working in an agent-driven workflow can request an equipment list, a revision diff, or an as-built check and receive structured output with links to the source crops.

‍
