Dimensional Inspection AI
Verify every dimension, every part, every cycle against your tolerances.
Dimensional Inspection AI for the Toughest Manufacturing Tolerance Problems
Deploy Anywhere, Run Everywhere
Run dimensional inspection on station cameras, robotic arms, fixed gauge stations, the edge, on-prem, in your VPC, or via API, wherever your line, cell, or QC station needs it.
One Platform, Full Adoption
Tools every team can adopt, from developers to business owners, no ML team required.
Secure and Reliable, Always
Data stays safe with SOC 2 Type II compliance, encrypted data, HIPAA compliance, and an uptime SLA.
- Length, Width & Diameter
- Hole Position & Pattern
- Gap & Flush (Panel Fit)
- Profile & Edge Geometry
- Feature Count & Placement
- GD&T Tolerance Verification
“Roboflow has been instrumental in accelerating our deployment of innovative AI solutions.”
Travis Turnbull
Vice President & CIO, Pella Corporation
Talk to a Vision AI engineer who's shipped dimensional inspection on the line
One out-of-tolerance feature, missed hole, or panel gap that drifts past spec can mean rework, scrap, or a PPAP rejection. Bring us your toughest dimensional problem and we'll map a working solution on the first call.
Ask us about:
- Solution architecture for ASME Y14.5 GD&T, ISO GPS, PPAP, and Gage R&R and MSA requirements
- Live demo on your line footage, part scans, or CAD-to-part comparison
- Deployment options: fixed gauge stations, station cameras, robot-mounted, edge, on-prem, or VPC
- ROI modeling against scrap, rework, sort and containment, and line-down chargeback costs
Over 16,000 organizations build with Roboflow.
- Rivian
- Pella
- Chobani
- USG Corporation
- BNSF Railway
- American Woodmark
Automate Dimensional Inspection, Cut Scrap, Protect Assembly Fit with Vision AI
Turn slow, manual measurement into real-time dimensional inspection with Roboflow. Built for the operations where one out-of-tolerance feature, missing hole, or oversized gap can mean rework, scrap, or an assembly that fails at the next station. Whether you're measuring stamped parts, machined components, sheet metal fabrications, or final assemblies, Roboflow delivers accurate, scalable dimensional inspection on the cameras and gauges your team already runs.

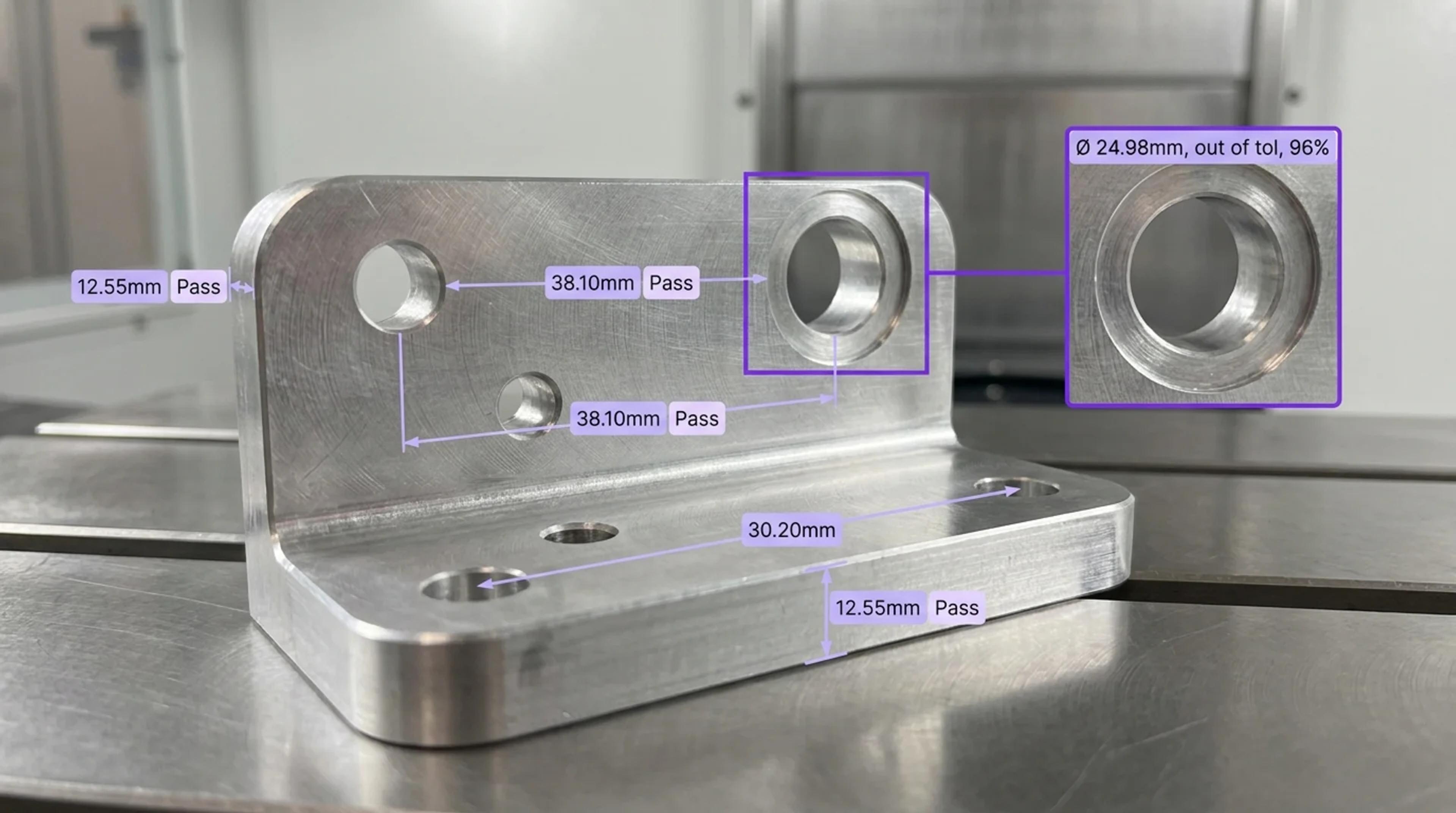

Precision Part and Component Measurement:
- Measure length, width, diameter, and feature spacing on stamped, machined, and molded parts
- Verify hole positions, patterns, counts, and diameters against print
- Check edge geometry, radius, and profile against GD&T tolerances
Assembly Fit, Gap, and Flush Verification:
- Measure gap and flush between panels, doors, hoods, and trim
- Verify hole alignment, mating-surface fit, and feature stack-up across assemblies
- Catch fit issues at the build station before they cascade downstream

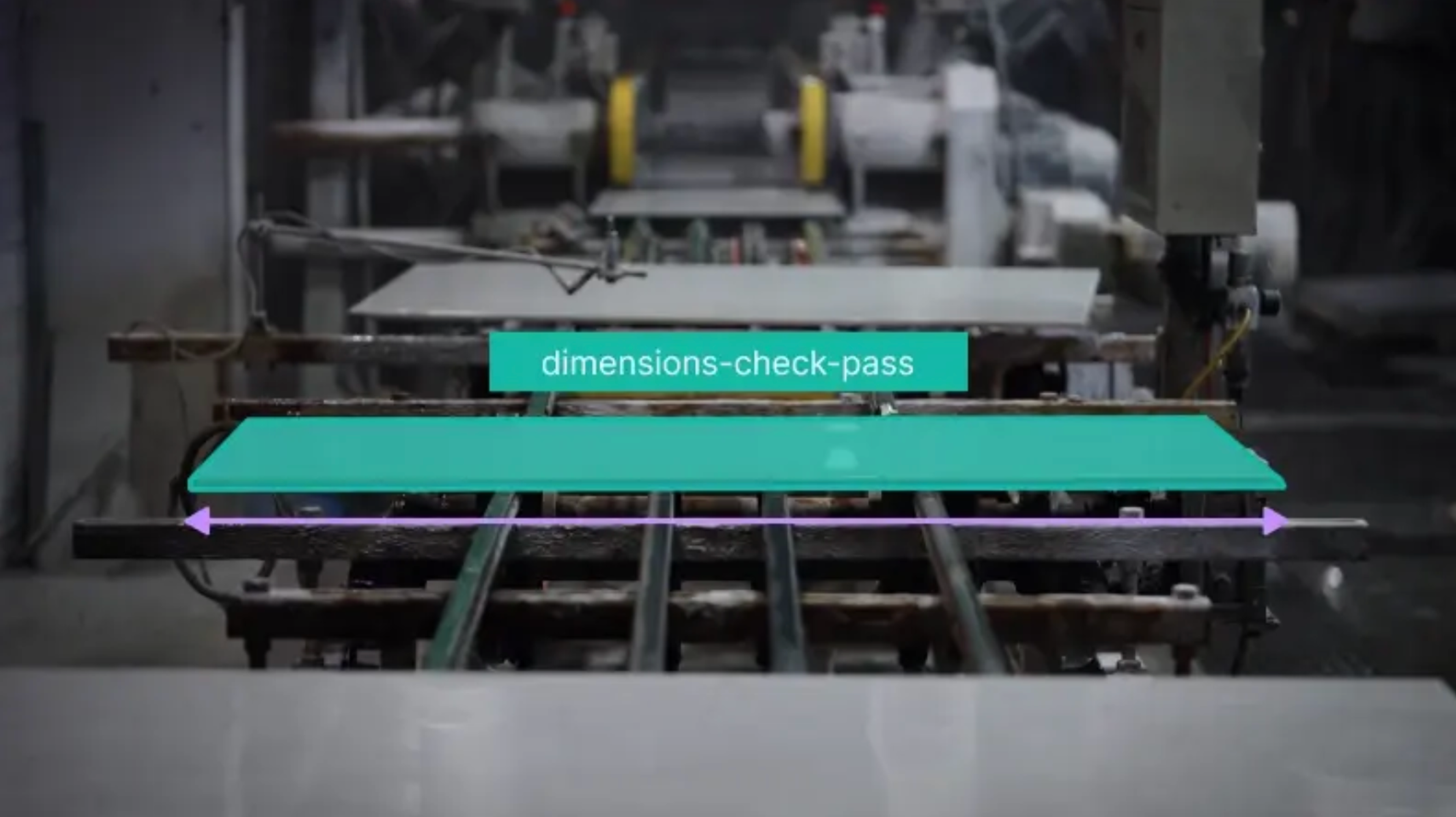

In-Line Dimensional Inspection at Line Speed:
- Run dimensional inspection on existing line cameras, robotic arms, or fixed gauge stations, on the edge if you need it
- Measure every part at line speed without slowing throughput
- Surface only the parts that need a second look so QC technicians focus where it counts
Bring intelligence to every measurement today. Stop out-of-spec parts from creating scrap, eroding margin, or returning as warranty claims.
