Connector Pin Inspection AI

Add a real-time inspection layer to every connector with vision AI for connector pin inspection. Built for the operations where one pin bent two degrees out of a field of sixty-four turns a finished harness into rework, a terminal seated a millimeter short passes the pull check and fails on washboard road, or the connector that jams a robot's mating step stops the line while everyone hunts for the reason. Whether you're molding and loading connectors, building harnesses and ECUs, or mating hundreds of connections in final assembly, Roboflow inspects the pin field on every connector at line rate, with a per-connector record behind every pass.

Pin-Level Defects:

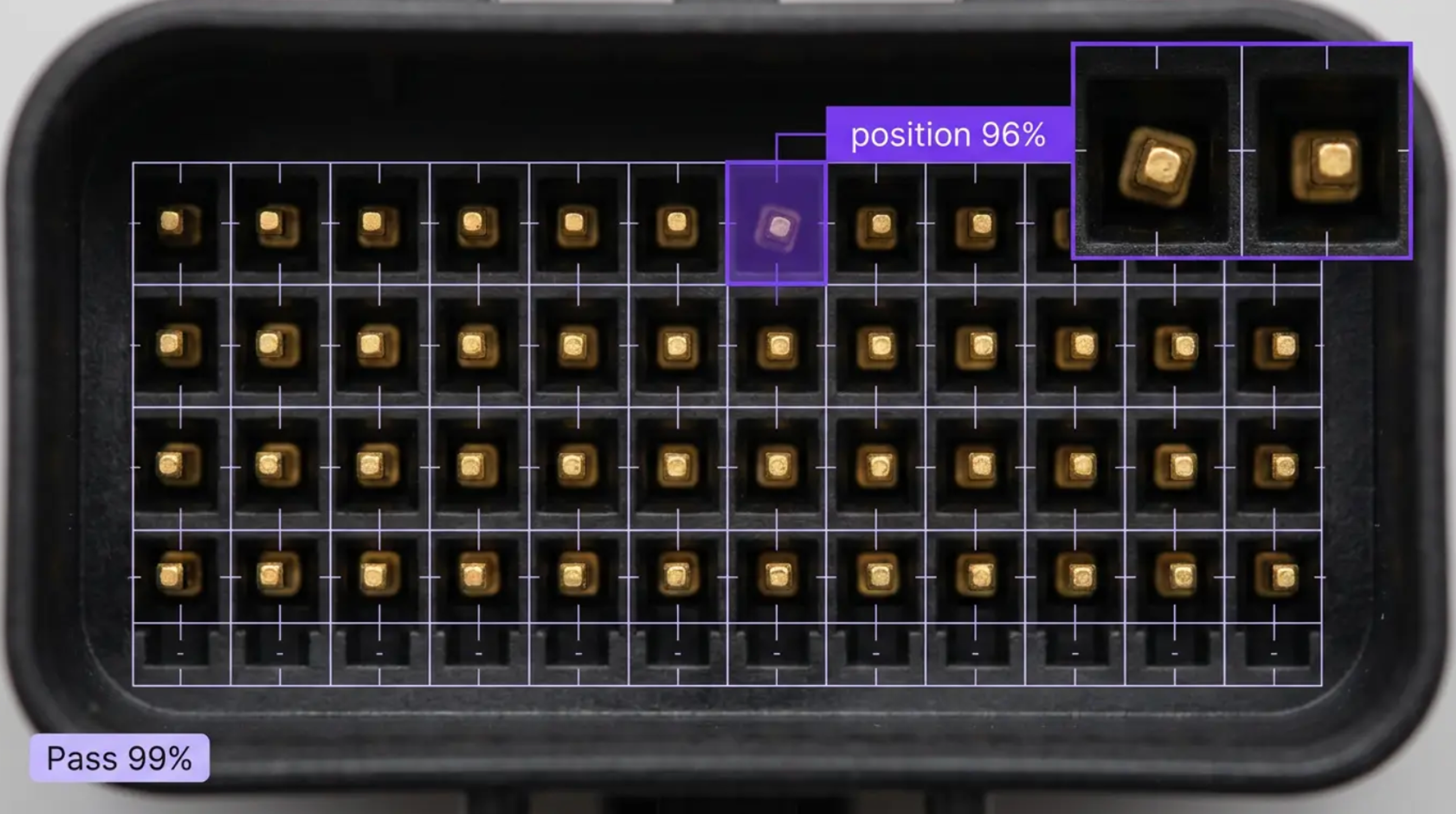

• Catch bent, skewed, and splayed pins across the whole field, including the one leaning two degrees in a field of sixty-four
• Detect missing and pushed-back pins and terminals, the seated-short failures that pass continuity on the bench
• Flag pin position and alignment deviations against the housing, on board-mount tails as well as mating faces

Housing, Contacts, and Contamination:

• Detect housing cracks, broken latches, and damaged keying that turn mating into a field return
• Catch corrosion, plating defects, and discoloration on contact surfaces before they become resistance
• Flag debris, flux residue, and contamination inside cavities, where a fiber today is an intermittent next year

Lines, Mating, and Systems Integration:

• Inspect at connector loading, before mating in final assembly, and at incoming, with the same platform
• Verify robot-presented connectors before automated mating, so a bent pin stops one part instead of jamming a cell
• Route failed connectors to rework in real time through PLC and MES integration, with per-connector records tied to serial and lot

Bring intelligence to every connector today. Stop pin defects from becoming buried rework, scrapped assemblies, or intermittents in the field.

‍

More About Connector Pin Inspection

What is connector pin inspection with Vision AI?

Connector pin inspection with vision AI uses computer vision models to inspect connector pin fields and housings: bent, skewed, missing, and pushed-back pins, position and alignment deviations, corrosion and contamination on contacts, and housing and latch damage. Models trained on your actual connectors inspect every pin on every connector at line rate, at loading, incoming, and before mating, with per-connector records that support IPC-A-620 acceptance and customer audits.

Can Vision AI see a slightly bent pin in a dense, reflective pin field?

Pin fields are the hard case: dozens of identical gold or tin pins in deep, shadowed cavities, every surface reflective, and the defect a single pin leaning a couple of degrees or seated a millimeter short. Deep-learning models trained on your actual connectors and imaging setup learn each connector's correct pin geometry and flag the pin that breaks it, hold that judgment across platings and lighting, and flag borderline pins for review instead of guessing. For micron-level pin height and coplanarity measurement, 3D and laser gauges remain the instrument; vision AI catches the bent, missing, pushed-back, and damaged pins that mating discovers otherwise.

Does connector inspection support IPC-A-620 and automotive programs?

Yes. Roboflow models can run as documented inspection controls against IPC-A-620 acceptance criteria and inside IATF 16949 (automotive), AS9100 (aerospace), and MIL-spec connector programs, with per-connector inspection records, imagery, model version history, and training data lineage that support PPAP submissions, audits, and customer source inspection. Roboflow is the inspection engine; your quality team owns the acceptance criteria.

Can it integrate with our line PLCs, MES, and test systems?

Yes. Roboflow Inference exposes a standard API and supports common industrial protocols, so connector inspection events flow into your existing systems: line PLCs from Allen-Bradley and Siemens, MES and ERP platforms like SAP and Oracle, test and traceability systems, and SCADA and HMI platforms like Ignition and AVEVA, through REST, MQTT, OPC UA, and direct database writes. PLC-level integration routes failed connectors to rework the moment a pin fails, and every event carries connector serial, lot, station, and imagery, with a full audit trail behind every connector.

‍
