Brake Component Inspection AI

Add a real-time inspection layer to every brake component with vision AI for brake component inspection. Built for the operations where porosity on a friction face waits for heat cycling to become a crack, a pad's bond line looks fine from every angle except the one that matters, or the missing shim announces itself as a squeal in a customer's driveway and a claim on your quality record. Whether you're casting and machining rotors, pressing friction material, or assembling calipers and corner modules, Roboflow inspects every component in the one category where escape severity is never argued, with per-part records behind every shipment.

Rotors and Drums:

• Catch porosity, inclusions, and casting defects on friction faces and vanes before machining invests in them

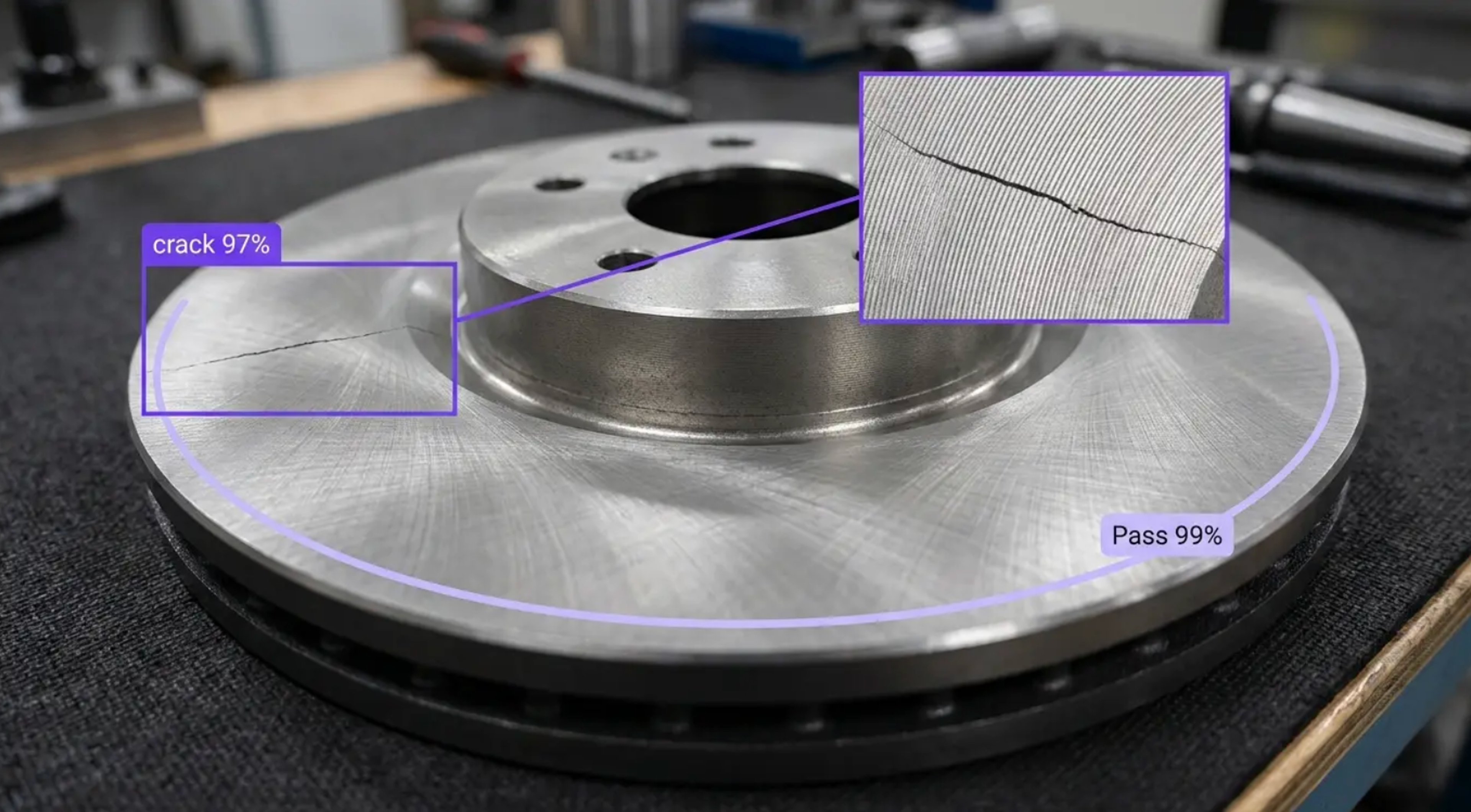

• Detect cracks and heat checking on machined and serviced rotors, the hairlines that propagate under heat cycling
• Verify coating coverage on hats and edges, and vane passages clear of casting flash and core sand

Pads and Friction Material:

• Catch cracks, chips, and edge defects in friction material, where dark textured surfaces hide flaws from rule-based checks
• Inspect the bond line between friction material and backing plate for delamination signs on every pad
• Verify chamfers, slots, shims, and clips are present, correct, and oriented, so the pad that ships is the pad that was validated

Calipers, Assembly, and Systems Integration:

• Inspect caliper castings and machined surfaces, and verify assembly completeness: seals seated, bleed screws in, brackets torqued and marked
• Confirm wear sensors, clips, and hardware on every corner module before it ships
• Route failed parts in real time through PLC and MES integration, with per-part records tied to lot and serial that support IATF 16949 and ECE R90 documentation

Bring intelligence to every brake component today. Stop brake defects from becoming judder campaigns, failure investigations, or the recall nobody debates.

‍

More About Brake Component Inspection

What is brake component inspection with Vision AI?

Brake component inspection with vision AI uses computer vision models to inspect rotors, drums, pads, and calipers: casting and machining defects on friction faces, cracks and heat checking, friction material and bond line condition, shim, clip, and sensor presence, and caliper assembly completeness. Models trained on your actual components inspect every part at line rate, with per-part records tied to lot and serial that support IATF 16949 and ECE R90 documentation.

Can Vision AI find defects in dark friction material and cast iron?

Brake components are the hard case twice over: friction material is dark, textured, and absorbs light, so cracks and chips hide inside its normal grain, and cast iron friction faces carry machining patterns that mimic and mask hairline defects. Deep-learning models trained on your actual pads, compounds, and rotor finishes learn each surface's normal texture and flag what breaks it, hold that judgment across compounds and suppliers, and route borderline parts for a check instead of guessing, which is the standard a safety-critical part deserves.

Does brake inspection support IATF 16949 and ECE R90?

Yes. Roboflow models can run as documented inspection controls inside your IATF 16949 (automotive quality management) and ISO 9001 processes, with per-part inspection records, imagery, model version history, and training data lineage that support PPAP submissions, ECE R90 aftermarket documentation, and customer audits. Roboflow is the inspection engine; your quality team owns the acceptance criteria, and friction performance testing keeps its own certification role.

Can it integrate with our machining cells, friction lines, and MES?

Yes. Roboflow Inference exposes a standard API and supports common industrial protocols, so brake inspection events flow into your existing systems: machining and friction line PLCs from Allen-Bradley and Siemens, MES and ERP platforms like SAP and Oracle, and SCADA and HMI platforms like Ignition and AVEVA, through REST, MQTT, OPC UA, and direct database writes. PLC-level integration routes a failed rotor or pad the moment a check fails, and every event carries part, lot, cell, imagery, and disposition, with a full audit trail behind every shipment.

‍
