Trim and Cut-Line Inspection AI

Whether you're molding and wrapping instrument panels and door panels, sewing and covering seats, laminating headliners and consoles, or assembling the finished cockpit, Roboflow inspects every trim surface, seam, cut line, and edge wrap at line speed, on the cameras already over your stations or a single camera you add, and turns each part into a pass, a fail, and a record.

Trim Surface and Wrap Inspection:

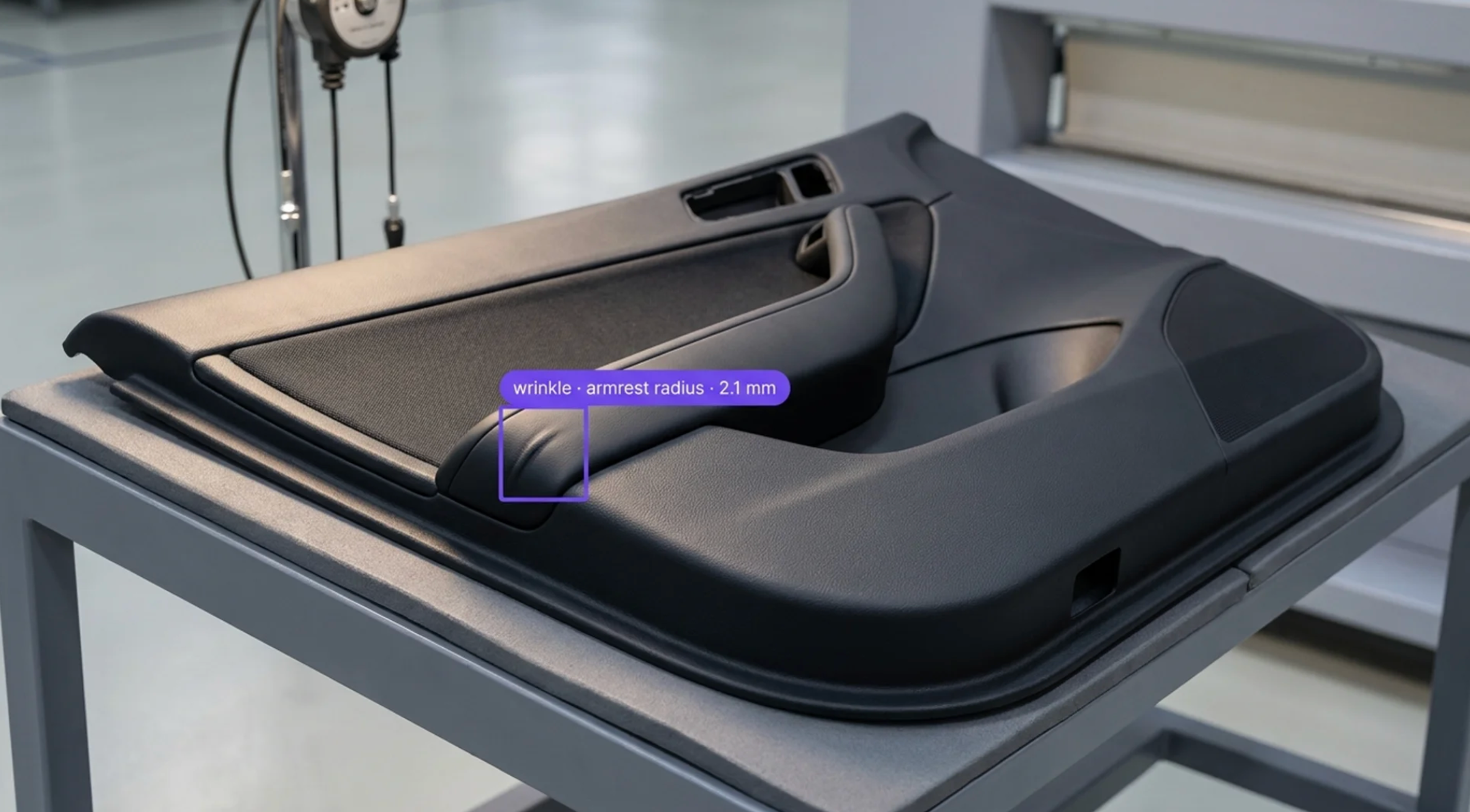

• Detect wrinkles, creases, bubbles, and delamination on wrapped door panels, instrument panels, consoles, and armrests, including at the tight radii where wrap defects hide
• Inspect edge wrap and fold-over quality, tuck depth, adhesive squeeze-out, and exposed substrate at panel edges and openings
• Verify grain, gloss, and color match across mating trim parts and against the master, so a panel from a different lot is caught before it is installed next to its neighbor

Cut Lines, Seams, and Stitching:

• Measure laser-scored airbag seam and tear-line position and continuity on instrument panels and door panels, and flag skips, over-burn, and offset against the design line
• Inspect stitch lines on seats, wheels, and panels for skipped stitches, broken thread, wandering seam position, and stitch spacing against the perforation or the design
• Verify trim cut lines, die-cut and waterjet edges, and perforation patterns for position, straightness, fray, and burn

Assembly, Traceability, and Systems Integration:

• Verify clip, fastener, and insert presence, correct part and color variant, and fit and flush at cockpit and door assembly, so the wrong variant never reaches the vehicle
• Trend defects by station, tool, material lot, and shift, so a wrap tool that has started wrinkling or a laser that has drifted shows up as a pattern before the customer does
• Push results, measurements, and images into MES, quality, and PLC systems through API integration, with a per-part image record behind every panel that ships

Bring intelligence to every trim station today.

‍

More About Trim and Cut-Line Inspection

What is automotive interior trim inspection with Vision AI?

Automotive interior trim inspection with vision AI uses cameras over wrap, sewing, lamination, and assembly stations and deep-learning models to inspect the trim surfaces, seams, cut lines, and edges of interior components: wrinkles, creases, bubbles, and delamination on wrapped panels; edge wrap and fold-over quality; grain, gloss, and color match; laser-scored airbag seam position and continuity; stitch line quality and position; trim cut and perforation accuracy; and clip, fastener, variant, and fit verification at assembly. Each part gets a pass or fail with the defect located on the image, results feed MES, quality, and PLC systems, and defect trends by station, tool, and lot support root cause. It complements the dimensional and gauge checks a plant already runs, covering the cosmetic and craftsmanship defects those checks cannot see. For paint, panel, and exterior surfaces, see surface inspection.

Can Vision AI find wrinkles and cosmetic defects on textured, low-contrast trim?

Yes, that is the case models are trained for: a wrinkle on a black grained PVC panel has almost no color contrast and reads only as a change in the grain and the way light falls, a bubble under a leather wrap is a soft shadow, and the same panel looks different under each station's lighting. Deep-learning models trained on your actual parts, materials, colors, and lighting learn the texture disruption and shading cues that separate a wrinkle from the grain and a bubble from a highlight, and controlled lighting, low-angle or structured light where a station needs it, makes surface topography visible to the camera the way an inspector tilts the part to see it. Models are validated against your craftsmanship team's own boundary samples, and borderline findings route to an inspector with the image and location, so the standard applied is your standard.

Can it integrate with our MES, quality systems, and PLCs?

Yes. Roboflow Inference (opens in a new tab) runs on an edge device at the station and exposes a standard API and common industrial protocols, so inspection results, measurements, and images flow into your existing systems: MES and quality platforms, PLCs from Siemens, Allen-Bradley, and Beckhoff for reject and hold, laser scoring and wrap tool controllers, part and lot traceability, SPC and quality data systems, and customer portals for Tier 1 to OEM reporting, through REST, MQTT, OPC UA, discrete I/O, and direct database writes. PLC-level integration holds a failed panel at the station, and every result carries part serial, variant, station, tool, material lot, timestamp, defect class, location, and the image, with a full record behind every part that ships, which is what an OEM asks for when a warranty claim comes back.

‍
