AI Vision Camera for Industrial Lines: Roboflow AI1

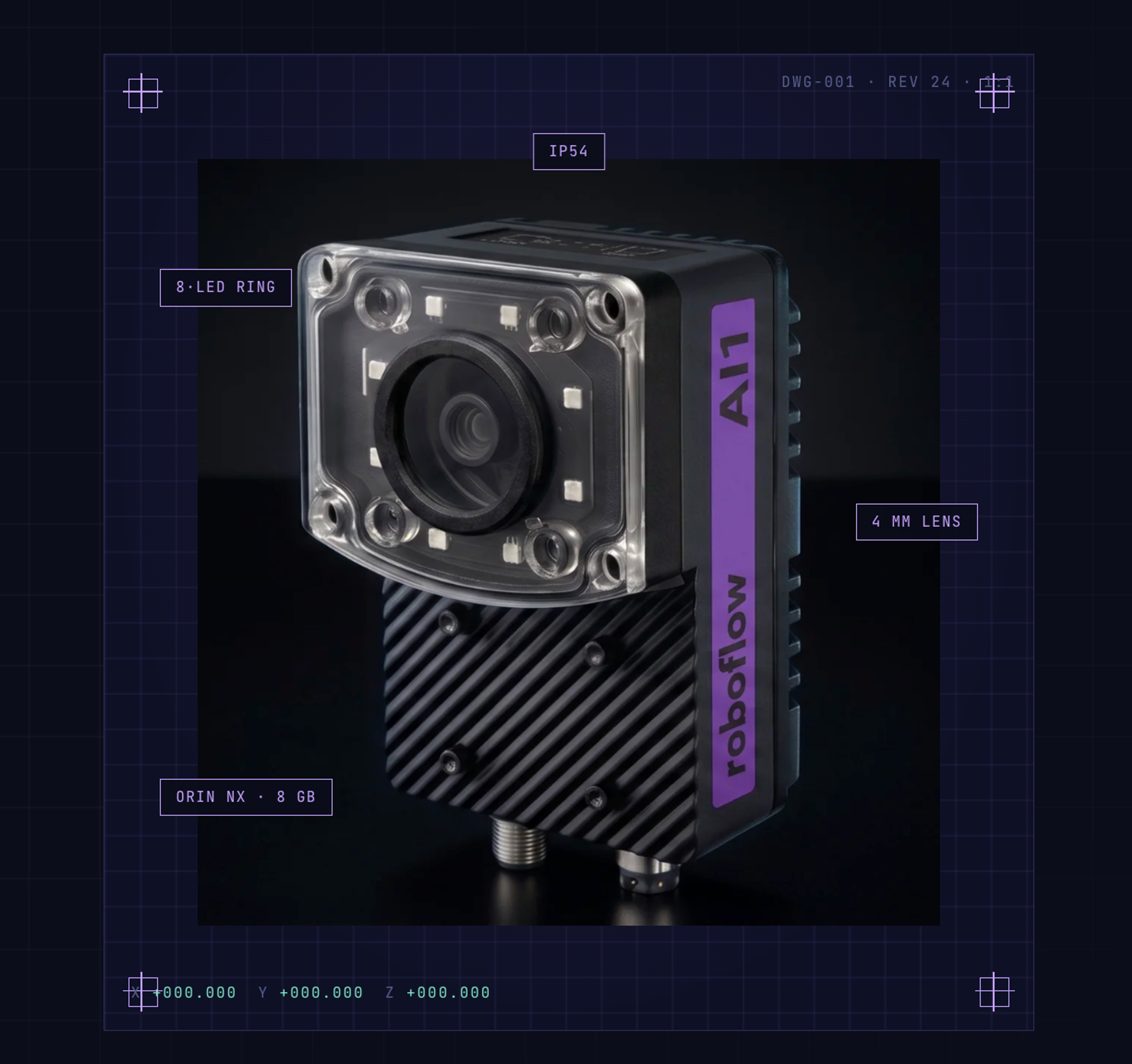

The AI1 is the shortest path from pixels to decisions. An 8 MP 4K sensor, NVIDIA Jetson Orin NX 8 GB on-device compute with 1024 CUDA cores, an integrated 8-LED ring, and the full Roboflow stack (Workflows, Deployment Manager, HMI, Vision Events) all in one ruggedized IP54 device, deployed at the station, not three rooms away in a vision cell. Built for the lines where one defect missed at the press becomes a warranty claim at the customer. Whether you're catching variable defects on the press, validating complex multi-part assembly, running multi-SKU changeover without rewriting PLC code, or tracking pallets across an intermodal yard, the AI1 runs Vision AI on the camera itself with PLC-grade edge inference under 100 ms, integrated with the OPC-UA, MQTT, Modbus, EtherNet/IP, and Profinet stack your floor already runs.

All-In-One Hardware, Industrial from the Start:

• 8 MP 4K sensor with 4 mm lens and integrated 8-LED ring on a single ruggedized IP54 device, designed to mount at the station and survive real industrial environments
• NVIDIA Jetson Orin NX 8 GB on-device GPU with 1024 CUDA cores, edge inference at PLC-grade sub-100-ms round-trip, no separate compute box and no constant cloud connection required
• 24V DC power, compact form factor designed for press, weld bay, assembly cell, packaging line, and yard deployment, not lab benches

The Roboflow Stack, Running On-Device:

• Roboflow Workflows: drag-and-drop production pipelines with 150+ blocks, chained models, logic, and integrations running natively on the AI1
• Deployment Manager: provision and update hundreds of sites from a single console, with over-the-air model and security patches across every camera in the fleet
• HMI: customizable edge display for operators, with live streams, pass/fail verdicts, and defect counts in real time, no cloud round-trip
• Vision Events: every part lands as a structured JSON event in MES, ERP, BI, and Slack, queryable in Snowflake, PowerBI, or Grafana, with full audit trail per part

Speaks Your Floor's Protocol on Day One:

• PLC and machine control: OPC-UA, MQTT, Modbus TCP, EtherNet/IP, Profinet, Rockwell, Siemens
• Additional camera support: RTSP, GigE Vision, Basler, FLIR, Lucid, Luxonis, Reolink, Unifi
• Enterprise security and compliance: SOC 2 Type II, HIPAA + BAA, SSO/SAML, RBAC, audit log, SSL A+ (Qualys)
• Deployment: VPC, on-prem, or hybrid, with five-year software support and over-the-air patches

Move inspection earlier on the line today. Stop defects from becoming warranty claims, near-misses from becoming OSHA recordables, and yard counts from becoming reconciliation errors.

‍
