Introducing an Improved Hard Hat Dataset for Computer Vision in Workplace Safety

In a given year, approximately 65,000 workers wearing hard hats (opens in a new tab) incur head injuries in the workplace, of which over one thousand (opens in a new tab) ultimately die. Workplace safety regulations exist to protect and promote wellbeing in the workplace, yet ensuring awareness and compliance can be a challenge. Even in cases of accidental negligence, an employee may find him or herself in a position where they were unaware that hard hats were required to be in a specific zone.

Computer vision more broadly has found a natural fit in helping capital intensive industries as monitoring equipment and conducting regular inspections can be quite costly. Extending these capabilities to look after individuals as much as equipment is a reasonable step to consider.

Download the Hard Hat Object Detection Dataset Here (opens in a new tab)

Introducing the Hard Hat Dataset

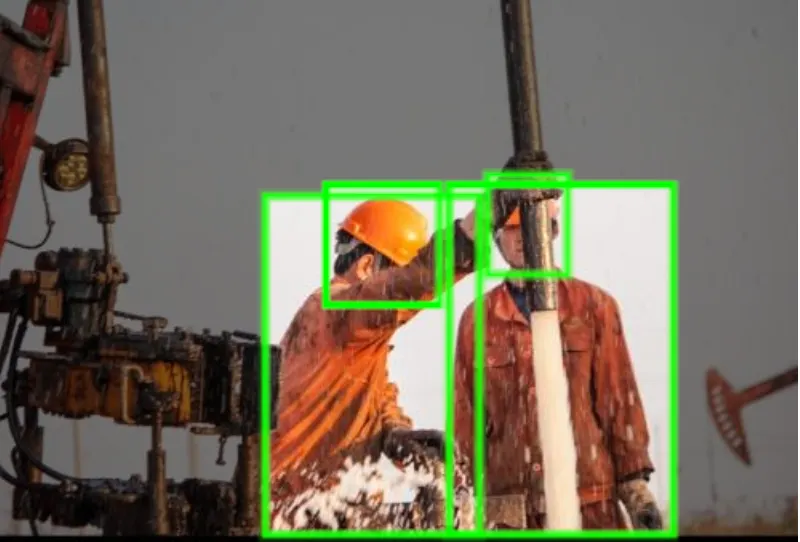

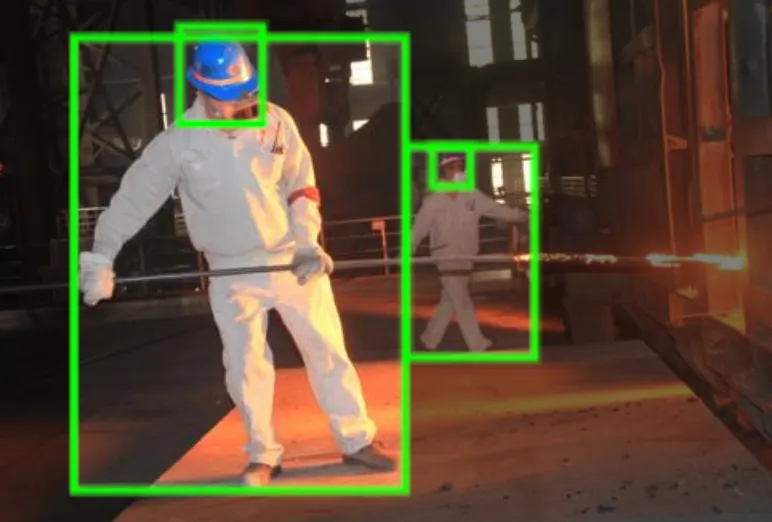

Originally collected and open sourced by researchers at Northeastern University in China (Xie, Liangbin, 2019 (opens in a new tab)), the hard hat dataset contains 7,035 images of workers in a wide array of situations that require protective hard hats to complete their day-to-day work. The dataset includes 27,039 annotations (approximately 3.8 per image) across three classes: those in a helmet (19,747), head (6,677), and person (615). The researchers released the dataset such that 5,269 of the images and their labels are in the training set, and the remaining 1,766 are in a validation set.

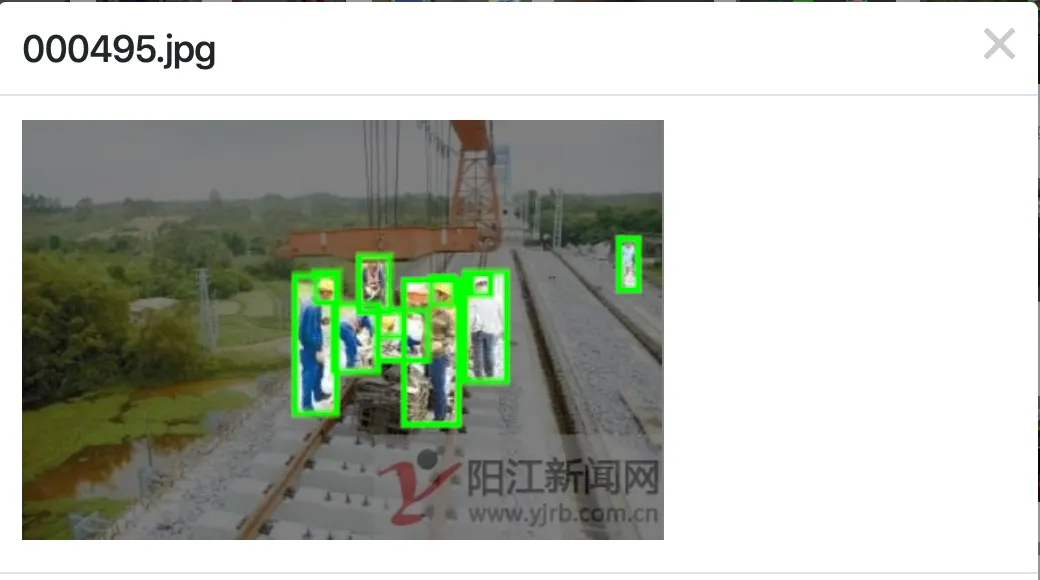

Notably, the Roboflow team did identify potential errors that were corrected before re-release. In image 000495.jpg, there is a single occurrence of an annotation called “others” and three individuals (that appear to be learning over) are labeled as such. The Roboflow team removed this annotation (but not the image as other labels were present) in our release of the dataset, as it appears to be a mistake resulting in a dramatically underrepresented class, decreasing training quality of the overall data.

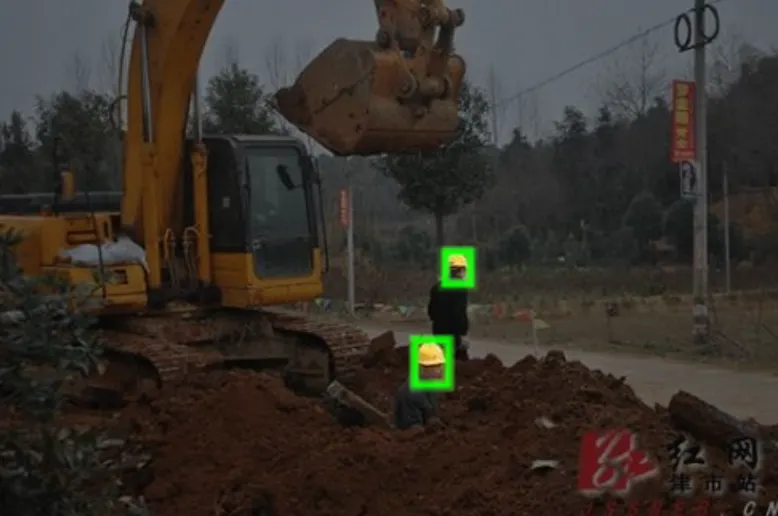

In addition to practical applications where this dataset may be intriguing, the dataset provides prime territory to assess and compare model performance. The images are of various shapes and sizes, there is significant class imbalance (opens in a new tab), and many of the annotations are particularly small (heads in broader scenery). These characteristics may make for worthwhile test of various model strengths and weaknesses, e.g. how poorly YOLOv3 (opens in a new tab) performs on small bounding boxes.

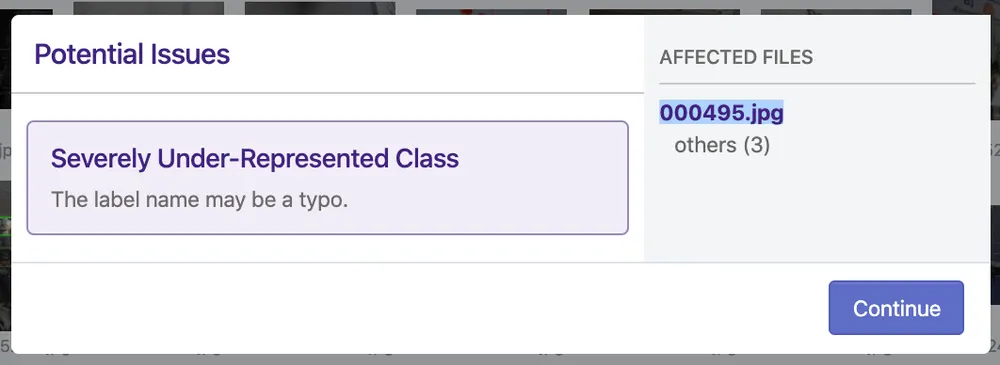

You can see the Advanced Dataset Health Check that led us to find all of these problems here (opens in a new tab).

We’re excited to make this research more open. Check out the full dataset (opens in a new tab) on Roboflow Public Datasets (opens in a new tab).
